Identification of satellited markers by microdissection and fluorescence in situ hybridization: a clinical case of isodicentric chromosome 22

Abstract

Background

The presence of small supernumerary marker chromosomes (sSMCs) in a karyotype leads to diagnostic questions because the resulting extra material may cause abnormal development depending on the origin of the duplication/triplication. Because SMCs are so small, their origin cannot be determined by conventional cytogenetic techniques, and new molecular cytogenetic methods are necessary. Here, we applied a target approach to chromosome rearrangement analysis by isolating a chromosome of interest via microdissection and using it in fluorescence in situ hybridization (FISH) as a probe in combination with whole-chromosome painting probes. This approach allows to identify origins of both the euchromatin and repeat-rich regions of a marker.

Case presentation

We report a case of an adult male with congenital atresia of the rectum and anus, anotia, and atresia of the external auditory canal along with hearing loss. Karyotyping and FISH analysis with whole-chromosome painting probes of acrocentric chromosomes and the constructed microdissection library of the marker chromosome reliably identified an additional chromosome in some metaphases: mos 47,XY,+idic(22)(q11.2)[14]/46,XY [23].

Conclusion

We propose to use whole-chromosome libraries and microdissected chromosomes in FISH to identify SMCs enriched with repeated sequences. We show that the methodology is successful in identifying the composition of a satellited marker chromosome.

Background

Small supernumerary marker chromosomes (SMCs) are structurally abnormal chromosomes that are generally equal in size to or smaller than chromosome 20 of the same metaphase spread [1]. SMCs are found in ~0.043% of newborns and ~0.077% of prenatal cases and are tenfold more prevalent among patients with intellectual disability and fourfold more prevalent among subfertile individuals [2]. Most SMCs (~70%) originate from short arms and pericentromeric regions of acrocentric chromosomes [3]. SMCs derived from nonacrocentric autosomes are rarer and arise at a frequency of ~30% of all markers [4]. It has been previously reported that satellite markers derived from chromosome 22 pose a high risk of a phenotypic abnormality [5]. On the contrary, markers derived from chromosomes 13, 14, 15, and 21 as well as small ring autosomal markers derived from both alphoid and satellite II or III pericentric heterochromatin of chromosomes 1, 9, 15, and 16 are all associated with a low risk of a phenotypic abnormality [5]. Approximately one-third of small SMC (sSMC) cases have a specific clinical picture, and most of the remaining sSMCs are not yet correlated with clinical syndromes. Specific SMCs have been associated with Pallister–Killian syndrome involving isochromosome 12p, inverted duplication 15q12–q13 syndrome, isochromosome 18p syndrome, and cat eye syndrome (CES) [1].

Conventional karyotyping can certainly detect large aberrations, but origin identification for small supernumerary elements is beyond its resolution. For identification of sSMCs carrying heterochromatin or repeated sequences, the common method of GTG staining is not suitable. Fluorescence in situ hybridization (FISH) with human-sorted chromosome-specific painting probes is informative only when the fragment of a q arm with euchromatin is present in the marker. Thus, FISH designed to help with the identification of marker origin is powerless in cases of chromosomes derived from repeat-rich fragments. Here, we use microdissection of an sSMC followed by direct and reverse painting of affected and unaffected human metaphases to identify the origin of the sSMC and to determine the region of homology up to the cytogenetic-band level.

Case presentation

An adult male patient (19 years old at the time of the study) with intellectual disability has a large number of congenital malformations. Clinical findings in the proband included congenital atresia of the rectum and anus (corrected after birth), anotia, and atresia of the external auditory canal together with mixed conductive and sensorineural hearing loss. Computed tomography of temporal bones revealed signs of atresia of the right external auditory canal, hypoplasia of the tympanic cavity, and aplasia of cells of the right mastoid process. No other malformations were detectable, e.g., iris coloboma was absent.

FISH with whole-chromosome painting probes of acrocentric chromosomes revealed a narrow band from chromosome 22 on an sSMC and faint signals from all acrocentric chromosome probes on both arms of the marker. We then carried out microdissection of the chromosome of interest. By FISH of this microdissected whole-chromosome probe onto normal metaphases and metaphases with a marker, we determined the origin of the sSMC as bisatellite and dicentric idic(22)(pter→q11.2::q11.2→pter), which causes partial tetrasomy by inverted duplication of an HSA22 fragment (Fig. 1). FISH and the microdissection were performed as described earlier [6,7,8,9,10]. The isodicentric bisatellited chromosome formation model was proposed in the last century [11]. The isodicentric chromosome 22 [idic(22)] formation scheme in a simplified outline is shown in Fig. 2. No rearrangements were found in the proband’s mother’s metaphases, and the father’s karyotype was not available.

Fig. 1
figure1

FISH with painting probes of human chromosome 22 (red signal) and of the marker microdissected chromosome (green signal) on metaphase chromosomes of the proband

Fig. 2
figure2

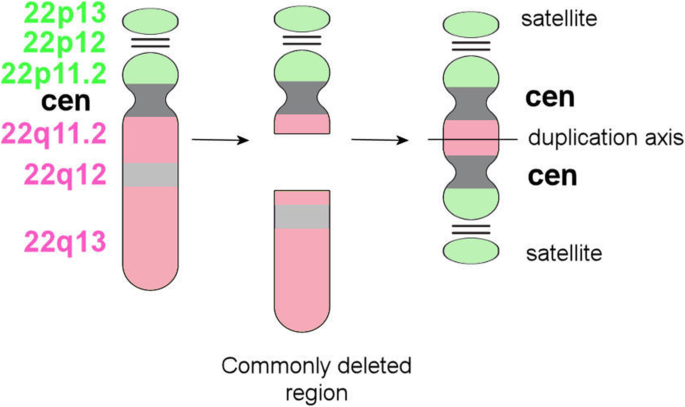

The bisatellited and dicentric idic(22) formation scheme in a simplified outline. The acentric fragment is commonly lost

Discussion

The majority of sSMCs (65%) originate from chromosome 15, whereas sSMCs derived from other acrocentric chromosomes constitute only 7% [12]. A subset of SMCs(22) confers tri- or tetrasomy onto the cat eye chromosomal region [1]. Chromosome 22 partial tetrasomy is present in several syndromes such as CES and inv dup(22)(q11.2) syndrome. Approximately 40% of CES patients present with the classic triad of symptoms: anal anomalies, preauricular skin tags, and coloboma of the iris, which may make an eye look like a cat eye [12]. In contrast to other satellite markers, an sSMC derived from chromosome 22 commonly has serious phenotypic effects [5].

Approximately 23% of SMCs are inherited, either from the mother (16%) or father (7%), and the rest are formed de novo [4]. In early studies, there were reports about direct transmission of CES [13,14,15,16,17]. Rarely, CES is transmitted as a result of a balanced translocation in one of the parents [18, 19]. Currently, it is generally accepted that most cases of chromosome 22 partial tetrasomy are not inherited and arise de novo. The condition generally occurs sporadically as a random event during oogenesis or spermatogenesis. The de novo origin of the idic(22) described here is possible, being supported by the mosaic nature of the rearrangement. The growing amount of information on clinical and laboratory data from previously described carriers of sSMCs is valuable. Detailed reporting of every case may help future clinicians and parents to make proper prognostic assessments and reproductive decisions.

Here, repeat-rich p arms of the marker chromosomes prevented their reliable identification by FISH with a standard whole-chromosome painting probe alone, producing a faint background signal on short arms of all acrocentrics and in the marker. The combined application of direct FISH with a sorted whole-chromosome DNA probe and reverse painting with DNA of a microdissected repeat-rich marker was developed here as an efficient way to identify isodicentric markers formed from short p arms and pericentromeric regions of human acrocentric chromosomes. The marker was identified as dicentric idic(22)(pter→q11.2::q11.2→pter). The region affected by the rearrangement is composed of a gene-poor and repeat-rich p arm and of the euchromatic region of proximal 22q.

Conclusions

Microdissection is an efficient technique for constructing specific probes for marker chromosomes and is especially valuable in cases of small repeat-rich elements. The constructed microdissection library of idic(22) is now available and included in the array of FISH probes for cytogenetic diagnosis of sSMCs.

Availability of data and materials

All data generated or analyzed during this study are included in this article. Additional information is available from the corresponding author on request.

Abbreviations

CES:

Cat eye syndrome

FISH:

Fluorescence in situ hybridization

idic:

Isodicentric chromosome

sSMC:

Small supernumerary marker chromosome

References

  1. 1.

    Liehr T, Mrasek K, Weise A, Dufke A, Rodríguez L, Martínez Guardia N, et al. Small supernumerary marker chromosomes – progress towards a genotype-phenotype correlation. Cytogenet Genome Res 2006;112:23–34. DOI: https://doi.org/10.1159/000087510.

    CAS  Article  PubMed  Google Scholar

  2. 2.

    Liehr T, Weise A (2007) Frequency of small supernumerary marker chromosomes in prenatal, newborn, developmentally retarded and infertility diagnostics. Int J Mol Med 19:719–731. https://doi.org/10.3892/ijmm.19.5.719

    Article  PubMed  Google Scholar

  3. 3.

    Reddy KS, Aradhya S, Meck J, Tiller G, Abboy S, Bass H (2013) A systematic analysis of small supernumerary marker chromosomes using array CGH exposes unexpected complexity. Genet Med 15:3–13. https://doi.org/10.1038/gim.2012.78

    CAS  Article  PubMed  Google Scholar

  4. 4.

    Crolla JA, Youings SA, Ennis S, Jacobs PA (2005) Supernumerary marker chromosomes in man: parental origin, mosaicism and maternal age revisited. Eur J Hum Genet 13:154–160. https://doi.org/10.1007/s004390100571

    CAS  Article  PubMed  Google Scholar

  5. 5.

    Callen DF, Eyre H, Yip MY, Freemantle J, Haan EA (1992) Molecular cytogenetic and clinical studies of 42 patients with marker chromosomes. Am J Med Genet 43:709–715. https://doi.org/10.1002/ajmg.1320430412

    CAS  Article  PubMed  Google Scholar

  6. 6.

    Young BD, Ferguson-Smith MA, Sillar R, Boyd E (1981) High-resolution analysis of human peripheral lymphocyte chromosomes by flow cytometry. Proc Natl Acad Sci U S A 78:7727–7731. https://doi.org/10.1073/pnas.78.12.7727

    CAS  Article  PubMed  PubMed Central  Google Scholar

  7. 7.

    Ferguson-Smith MA, Yang F, O’Brien PCM (1998) Comparative mapping using chromosome sorting and painting. ILAR J 39:68–76. https://doi.org/10.1093/ilar.39.2-3.68

    Article  PubMed  Google Scholar

  8. 8.

    Telenius H, Carter NP, Bebb CE, Nordenskjöld M, Ponder BA, Tunnacliffe A (1992) Degenerate oligonucleotide-primed PCR: general amplification of target DNA by a single degenerate primer. Genomics 13:718–725. https://doi.org/10.1016/0888-7543(92)90147-k

    CAS  Article  PubMed  Google Scholar

  9. 9.

    Graphodatsky AS, Yang F, Serdukova N, Perelman P, Zhdanova NS, Ferguson-Smith MA (2000) Dog chromosome-specific paints reveal evolutionary inter- and intrachromosomal rearrangements in the American mink and human. Cytogenet Cell Genet 90:275–278. https://doi.org/10.1159/000056788

    CAS  Article  PubMed  Google Scholar

  10. 10.

    Yang F, O’Brien PC, Milne BS, Graphodatsky AS, Solanky N, Trifonov V et al (1999) A complete comparative chromosome map for the dog, red fox, and human and its integration with canine genetic maps. Genomics 62:189–202. https://doi.org/10.1006/geno.1999.5989

    CAS  Article  PubMed  Google Scholar

  11. 11.

    Van Dyke DL, Weiss L, Logan M, Pai GS (1977) The origin and behavior of two isodicentric bisatellited chromosomes. Am J Hum Genet 29:294–300

    PubMed  PubMed Central  Google Scholar

  12. 12.

    LLiehr T (2012) Small supernumerary marker chromosomes (sSMC): a guide for human geneticists and clinicians. Heidelberg, Dordrecht, London, New York: Springer. https://doi.org/10.1007/978-3-642-20766-2

  13. 13.

    Schachenmann G, Schmid W, Fraccaro M, Mannini A, Tiepolo L, Perona GP, et al. Chromosomes in coloboma and anal atresia. Lancet 1965;286:290. DOI: https://doi.org/10.1016/s0140-6736(65)92415-3.

    Article  Google Scholar

  14. 14.

    Dallapiccola B (1971) Dermatoglyphics and chromosomes in cat-eye syndrome. Br Med J 3:767–768. https://doi.org/10.1136/bmj.3.5777.767-c

    CAS  Article  PubMed  PubMed Central  Google Scholar

  15. 15.

    Schinzel A, Schmid W, Fraccaro M, Tiepolo L, Zuffardi O, Opitz JM, et al. The cat eye syndrome: dicentric small marker chromosome probably derived from a No. 22 (Tetrasomy 22pter(q11) associated with a characteristic phenotype. Hum Genet 1981;57. DOI: https://doi.org/10.1007/bf00282012.

  16. 16.

    Lüleci G, Bagci G, Kivran M, Lüleci E, Bektaş S, Başaran S. A hereditary bisatellite-dicentric supernumerary chromosome in a case of cat-eye syndrome. Hereditas 1989;111:7–10. DOI: https://doi.org/10.1111/j.1601-5223.1989.tb00369.x.

    Article  PubMed  Google Scholar

  17. 17.

    Van Hove JLK, McConkie-Rosell A, Chen Y-T, Kimberly Iafolla A, Lanman JT, Hennessy MD et al (1992) Unbalanced translocation 46,xy,−15, der(22)t(15;22)(q13;q11)pat: case report and review of the literature. Am J Med Genet 44:24–30. https://doi.org/10.1002/ajmg.1320440107

    Article  PubMed  Google Scholar

  18. 18.

    Ing PS, Lubinsky MS, Smith SD, Golden E, Sanger WG, Duncan AMV et al (1987) Cat-eye syndrome with different marker chromosomes in a mother and daughter. Am J Med Genet 26:621–628. https://doi.org/10.1002/ajmg.1320260317

    CAS  Article  PubMed  Google Scholar

  19. 19.

    Kosztolányi G, Bühler EM (1985) Partial trisomy 22–an old case reexamined. Hum Genet 69:193–194. https://doi.org/10.1007/BF00293299

    Article  PubMed  Google Scholar
