Case report: a de-novo 7p12.3 microduplication detected in an infant with perineal hamartoma and imperforate anus

Abstract

Background

Anorectal malformations (ARM) represent a wide spectrum of defects. Caudal and genitourinary malformations can associate with anorectal malformations. Genetic factors may play role in the development of anorectal malformations. Perineal masses like sacrococcygeal teratoma, rectal prolapse, or duplication cysts were reported before, but their association with perineal hamartoma and anal atresia is extremely rare.

Case presentation

Here, we report an 11-month-old female infant. She had 551 kb duplication at 7p12.3 with perineal hamartoma and anal atresia consisting a cystic lesion with a diameter of 4 mm at the filum terminale (L2 vertebra) on lumbar magnetic resonance imaging (MRI) in neonatal period. She presented with hypotonia. She had anorectal anomaly and external perineal mass bulging from left major labium extending across anal region with imperforate anus. There was 1 × 1 cm polyp-like protrusion on it. She was operated in neonatal period. Genetic laboratory investigations showed karyotype 46, XX. The microduplication of the chromosome 7p12.3 was detected by microarray analysis. There were not any significant homozygous or heterozygous variants determined  by whole-exome sequencing.

Conclusions

To the best of our knowledge, this is the first report of a patient with a microduplication of the chromosome 7p12.3, and second case with perineal hamartoma and imperforate anus. Clinicians should pay attention to microdeletions and microduplications while giving genetic counseling to patients with urogenital and anorectal abnormalities.

Background

Anorectal malformations (ARM) represent a wide spectrum defects and present in 2–5 per 10,000 live births. These malformations include a variety of caudal and genitourinary malformations, e.g. sacral masses, gynecologic, sacral anomalies, esophageal, duodenal, and anal atresia [1]. Perineal masses are sacrococcygeal teratoma, rectal prolapse, or duplication cysts. Its association with perineal hamartoma and anal atresia is extremely rare [2]. Chromosomal microdeletions and microduplications are present the main genetic etiologies for children who have dysmorphic features and congenital abnormalities [3]. The association between 7p12.3 microduplication and ARM has not been fully understood. Here, we report a female infant with 551 kb duplication at 7p12.3 with perineal hamartoma and anal atresia.

Case presentation

An 11-month-old girl admitted the genetic outpatient clinic due to congenital hypotonia with genetic test results. She was the first child from a non-consanguineous marriage. There was not any significant family history. She was born with C/S delivery at a gestational age of 40 weeks and her birth weight was 3400 g. She was hospitalized in the neonatal intensive care unit because of anal atresia, and a mass in the genital area. The mass was 4 × 5 cm size, soft in nature bulging from left major labium extending across anal region with imperforate anus. There was 1 × 1 cm polyp-like protrusion on it. Meconium passage was open (Fig. 1A, 1B). She was operated when she was on neonatal period. The perineal poly-like lesion was excised. A colostomy was opened due to anal atresia. Colostomy was closed one month later. The histopathological examination of perineal poly-like lesion revealed a hamartoma containıng adipose tissue, which was separated with fibroid tissue. In physical examination, there was not edema, joint laxity or tenderness, leg length asymmetry, other cutaneous lesions. She had a length of 74 cm (25th to 50th percentile), a weight of 8.430 kg (10th to 25th percentile) and a head circumference of 44.5 cm (25th percentile). She had long philtrum, thin upper lip, big round eyes, and wide forehead. Her visual and hearing examinations were normal. She could not sit without support. Deep tendon reflexes were normal. The Babinski sign was flexor and there was not a clonus sign. She slipped her head back with traction. Denver 2 development test revealed; personal-social task: one delay (self-eating biscuit), fıne motor function: one warning (do not hit cubes together), language: compatible with age, great motor function: one warning (standing by holding). The brain magnetic resonance imaging (MRI) was normal. Lumbar MRI revealed a cystic lesion with a diameter of 4 mm at the filum terminal (L2 vertebra) (Fig. 1C, 1D). Diagnostic studies to localize other abnormalities in the urinary tract and cardiovascular system were normal. Laboratory findings were as follows: Creatinine kinase = 114 (N: 26–192 U/L), methyl malonic acid = 24.4 (N: 1.9–17 Umol/L, homocysteine = 10.24 (N: 4.4–13.5 Umol/L) in the blood. Urine organic acid analysis and tandem mass were normal. Chromosome analysis of patient was showed 46 XX female karyotype (Fig. 2). DNA sample obtained from peripheral blood was studied by using Agilent Oligonucleotide microarray to investigate for copy number variants was done using the 8X60K probe. The results were analyzed in Agilent Cytogenomic 5.0.0.38/GRCh37/hg19 analysis program. Microarray analysis was revealed 551 kb region on 7p12.3 duplication (position: 7:47,596,152–48,148,091; Fig. 3). This interval includes four genes (TNS3, PKDILI, HUSI, UPP1) associated with OMIM genes. Karyotype analysis of maternal was 46, XX and paternal was 46, XY. The microarray analysis of both parents were showed normal copy number and hybridization signals. We suggested that the microduplication of 7p12.3 was de-novo. Whole-genome sequencing of a DNA sample from our patient was performed by MGI (DNBSEQ-G400). The exome sequencing was negative for pathogenic variants or uncertain significance variants in genes possibly associated with this phenotype (Table 1).

Fig. 1
figure1

Mass on anorectal region and filum terminale cyst. 1A Mass with 4 × 5 cm, 1B 1 × 1 cm polyp-like skin protrusion, 1C, 1D: cystic lesion at filum terminale

Fig. 2
figure2

Normal karyotype (46,XX) was identified in the patient

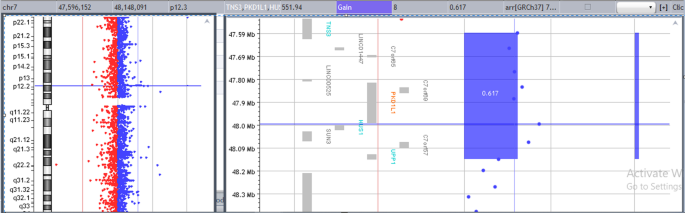

Fig. 3
figure3

Array-CGH results showing a 7p12.3 microduplication (47,596,152–48,148,091)

Discussion

Anal atresia is a congenital anorectal malformation. The anus is not perforated and the distal enteric component ends blindly. Hamartoma is defined as a benign tumor-like nodule composed of an overgrowth. The etiology of such malformations remain unclear and it is multifactorial [4]. Perineal masses are divided into three categories: lipomas, vascular anomalies, and hamartomas. Association of a perineal hamartoma with anorectal anomaly is extremely rare. In a review with 2000 cases of anorectal malformations there were presented only eight cases with hamartoma. The all patients were female [5]. The coexistence of perineal hamartoma and anal atresia was documented in the literature in only one child. Yamaçake et al., reported the association of perineal hamartoma with anorectal malformations in a neonate male. The karyotype of their case was 46, XY. They did not perform any molecular genetic test [2]. The karyotype of our proband was 46,XX. We also studied molecular genetic tests (microarray and whole exome sequencing) in our patient.

Array comparative genomic hybridization or comparative genomic hybridization, is a high-resolution genome-wide screening testing to detect a majority of chromosomal imbalance and microdeletion and microduplication [6]. Our patient had anorectal malformations due to 7p12.3 duplication of 551 kb, this duplication involves the four OMIM genes TNS3, PKD1L1, HUSI, UPP1. The whole exome sequencing did not reveal pathogenic or VUS (variant of uncertain significance) variants in genes possibly associated with this clinical picture. There are only a few patients with “pure” 7p12 microduplication at public databases (DECIPHER). One male case was described before. He had 23.19 kb deletion at 7p12.3 chromosome (position 47,829,924–47,853,114/GRCh38). His clinical features showed intestinal malrotation, polydactyly, and renal abnormalities. This overlapped region included the PKD1L1 gene like our patient’s. The other case reported in the literature was female. She had disproportionate short stature, hypoglycemia and microcephaly. Her cytogenetic duplication was at 7p12.3 chromosome (568.84 kb) including PKDILI, HUSI, UPP1, ABCA13 and SUN3 genes. The duplicated coordinate was between 48,106,082–48,595,326 regions. To our knowledge the duplication at 7p12.3 chromosome is seen very rare. Therefore, its clinical impact remains uncertain and the associated phenotypes poorly characterized.

Polycysiın 1-Like 1 (PKD1L1) is a gene associates with ciliary calcium signaling and embryonic laterality determination in humans and mice. Heterozygous PKD1L1 variants were found in patients with biliary atresia [7]. Rodriguez et al. described a patient with a homozygous PKD1L1 mutation with situs inversus, atrial septal defect, pulmonary artery stenosis and bicytopenia [8]. In 2019, Le Fevre et al. reported bi-allelic variants in the PKD1L1 gene associated with heterotaxy (abnormal organ arrangement) and congenital heart defects in four individuals from three unrelated families [9]. Heterotaxy of splenic, hepatic anomalies and bilobed lungs were described in the literature [10].

Human seminal inhibitor I (HUSI) gene encodes an inhibitor, which protects epithelial tissues from serine proteases. This gene is associated with renal osteodystrophy [11]. UPP1 (Uridine phosphorylase 1) gene encodes a uridine phosphorylase that functions in the degradation and salvage of pyrimidine ribonucleotides. Gene ontology analysis shows immune and inflammatory response [12]. Tensin 3 (TNS3) gene is encoding an intracellular protein. TNS3 may play an important role in actin remodeling and the dissociation of the integrin-tensin-actin complex. Downregulation of this gene contributes to metastasis in renal cell carcinoma [13]. In a study rs3750163 polymorphism of TNS3 gene was not associated with Immunoglobulin A nephropathy susceptibility in a Chinese Han population [14]. Duplication of chromosome 7p12.3 (including OMİM genes: TNS3, PKD1L1, HUSI, UPP1) can cause a spectrum of phenotypic features as seen in our patient with minor dysmorphic findings and anorectal malformations. The microduplication of our patient was not clearly associated with the clinical traits reported before. According to our knowledge, the duplication at 7p12.3 chromosome are rarely seen to date. It is expected that our case will contribute to the literature. Different phenotypic features may accompany the 7p12.3 microduplications. More detailed genetic and/or functional studies, or patients with point mutations/CNVs (copy number variants) affecting only one or a few of these genes, are needed to elucidate this possibility.

To date, this present case is the second case concerning the special coexisting of hamartoma, imperforate anus, and cystic lesion with a diameter of 4 mm at the filum terminale (L2 vertebra) on lumbar magnetic resonance imaging. Characteristics and pathogenesis of such patients have yet to be discussed and revealed. Genome-wide CNV analysis of our patient with perineal hamartoma and anal atresia was identified microduplication at 7p12.3. This case showed that association of duplication of 7p12.3 chromosome with the rare clinical entity with hypotonia, cystic lesion observed at the level of the filum terminale. Our case may help identify more cases with duplications in this region. Further studies are needed to describe anorectal malformations.

Conclusion

This case report shows the importance of molecular genotype and correlation of clinical phenotype. Although 7p12.3 duplication has not been reported before, this clinical features were suggestive it to be associated with anorectal malformations. Therefore, it is important to using the microarray analysis to identify microdeletion/microduplication with accompanied congenital malformations.

Table 1 Gene and gene functions in the region of 7p12.3 (position 47,596,152–48,148,091)

Availability of data and materials

The datas can be found in the archives of the Department of Medical Genetics, Eskişehir City Hospital.

Abbreviations

ARM:

Anorectal malformations

ABCA13 :

ATP-bindıng cassette, subfamily a, member 13

C/S:

Caesarean delivery

ChAS:

Chromosome Analysis Suite

CNV:

Copy number variant

GRCh38:

Genome Reference Consortium Human Build 38

HUSI :

Human Seminal Proteinase Inhibitor

kb:

Kilobase

MRI:

Magnetic resonance imaging

OMİM:

Online Mendelian Inheritance in Man

TNS3 :

Tensin 3

PKD1L1 :

Polycystin 1-like 1

SUN3 :

SUN domain-containing protein

UPP1 :

Uridine Phosphorylase 1

VUS:

Variant of uncertain significance

References

  1. 1.

    Falcone RA Jr, Levitt MA, Peña A, Bates M (2007) Increased heritability of certain types of anorectal malformations. J Pediatr Surg 42(1):124–128

    Article  Google Scholar

  2. 2.

    Yamaçake KGR et al (2014) A rare case of perineal hamartoma associated with cryptorchidism and imperforate anus: case report. Einstein (São Paulo) 12(2):234–236

    Article  Google Scholar

  3. 3.

    Watson CT, Marques-Bonet T, Sharp AJ, Mefford HC (2014) The genetics of microdeletion and microduplication syndromes: an update. Annu Rev Genom Hum Genet 15:215–244

    CAS  Article  Google Scholar

  4. 4.

    Alamo L, Meyrat BJ, Meuwly JY, Meuli RA, Gudinchet F (2013) Anorectal malformations: finding the pathway out of the Labyrinth. Radiographics 33(2):491–512

    Article  Google Scholar

  5. 5.

    Shaul DB et al (2005) Surgical management of perineal masses in patients with anorectal malformations. J Pediatr Surg 40(1):188–191

    Article  Google Scholar

  6. 6.

    Belfield EJ, Brown C, Gan X et al (2014) Microarray-based optimization to detect genomic deletion mutations. Genom Data 2:53–54

    Article  Google Scholar

  7. 7.

    Berauer J-P et al (2019) Identification of polycystic kidney disease 1 like 1 gene variants in children with biliary atresia splenic malformation syndrome. Hepatology 70(3):899–910

    CAS  Article  Google Scholar

  8. 8.

    Rodriguez S, Chaturvedi R, Blanchette V et al (2019) PKD1L1-related situs inversus associated with sideroblastic anemia. Clin Genet 95(5):629–630

    CAS  Article  Google Scholar

  9. 9.

    Le Fevre A, Baptista J, Ellard S et al (2020) Compound heterozygous Pkd1l1 variants in a family with two fetuses affected by heterotaxy and complex Chd. Eur J Med Genet 63(2):103657

    Article  Google Scholar

  10. 10.

    Lin AE, Krikov S, Riehle-Colarusso T et al (2014) Laterality defects in the national birth defects prevention study (1998–2007): birth prevalence and descriptive epidemiology. Am J Med Genet A 164A(10):2581–2591

    Article  Google Scholar

  11. 11.

    Averdunk L, Fitzner C, Levkovich T, Leaf DE, Sobotta M, Vieten J, Ochi A, Moeckel G, Marx G, Stoppe C (2019) Secretory Leukocyte Protease Inhibitor (SLPI)—a novel predictive biomarker of acute kidney injury after cardiac surgery: a prospective observational study. J Clin Med 8(11):1931

    CAS  Article  Google Scholar

  12. 12.

    Wang J et al (2020) Uridine phosphorylase 1 is a novel immune-related target and predicts worse survival in brain glioma. Cancer Med 9(16):5940–5947

    CAS  Article  Google Scholar

  13. 13.

    Carter JA et al (2013) CpG dinucleotide-specific hypermethylation of the TNS3 gene promoter in human renal cell carcinoma. Epigenetics 8(7):739–747

    CAS  Article  Google Scholar

  14. 14.

    Feng Y, Su Y, Ma C et al (2019) 3’UTR variants of TNS3, PHLDB1, NTN4, and GNG2 genes are associated with IgA nephropathy risk in Chinese Han population. Int Immunopharmacol 71:295–300

    CAS  Article  Google Scholar

Download references

Acknowledgements

We are grateful to the participating family.

Funding

Not available.

Author information

Affiliations

Authors

Contributions

AK, SY, CAA made substantial contribution to the conception of the patient’s diagnostic process, conducted the diagnostic procedures, and collected and interpreted clinical data concerning the patient. AK and SY were major contributors in drafting the initial version of the manuscript. AK reviewed and revised the manuscript. All authors read and approved the final manuscript.

Corresponding author

Correspondence to Ayca Kocaaga.

Ethics declarations

Ethics approval and consent to participate

Not applicable.

Consent for publication

Written informed consent was obtained from patient’s parents for publication of this case report and accompanying images.

Competing interests

The authors declare no conflicts of interest.

Additional information

Publisher's Note

Springer Nature remains neutral with regard to jurisdictional claims in published maps and institutional affiliations.

Rights and permissions

Open Access This article is licensed under a Creative Commons Attribution 4.0 International License, which permits use, sharing, adaptation, distribution and reproduction in any medium or format, as long as you give appropriate credit to the original author(s) and the source, provide a link to the Creative Commons licence, and indicate if changes were made. The images or other third party material in this article are included in the article's Creative Commons licence, unless indicated otherwise in a credit line to the material. If material is not included in the article's Creative Commons licence and your intended use is not permitted by statutory regulation or exceeds the permitted use, you will need to obtain permission directly from the copyright holder. To view a copy of this licence, visit http://creativecommons.org/licenses/by/4.0/.
