The potentials of nonlinear polarization with hyperspectral imaging of RNA for hepatocellular carcinoma early diagnosis

Egyptian Journal of Medical Human Genetics volume 25, Article number: 70 (2024) Cite this article

Abstract

Background

Most cancers acquire numerous genetic changes in proto-oncogenes as well as tumor-suppressor genes. Cancer's early diagnosis remains a challenge. Recently, nonlinear polarization has revealed the potential as a promising tool for early cancer diagnosis. Laser-induced nonlinear polarization can offer a novel fingerprint signature.

Methods

In this study, nonlinear polarization was adopted for the characterization of both DNA and RNA samples from healthy volunteers. Total DNA and RNA were illuminated with a 656-nm LED source, and the resonance frequencies (scattered and re-emitted signals) were captured and recorded using a hyperspectral camera.

Results

Changes in signal frequency as well as phase shift offered a potent means to differentiate DNA (control) from RNA (control). DNA (control) demonstrated characteristic resonance frequencies that differ from total RNA (control) at the 2nd, 3rd, 4th, and 5th harmonics. While DNA demonstrated a phase shift dominating at 0.88 GHz, RNA dominates at 0.106 GHz. The resonance spectral signature of RNA samples from people with hepatocellular carcinoma (HCC) was compared to that of RNA (control). RNA (HCC) demonstrated distinctive frequency signals at 0.014, 0.021, 0.032, and 0.072 GHz. These characteristics feature could facilitate early HCC diagnosis. While RNA (control) dominates at 0.014 and 0.072 MHz, RNA (HCC) dominates at 0.021 and 0.032.

Conclusion

As far as we are aware, this is the initial investigation into the use of simple nonlinear polarization to generate spectral fingerprinting signatures of total DNA and RNA. Furthermore, RNA mutations due to HCC were identified via characteristic nonlinear spectral signature.

Introduction

Cancer is driven by genetic mutations which affect cell proliferation and survival [1]. Genes that play a significant part in the development of cancer, fall into two basic categories: tumor-suppressor genes and proto-oncogenes [2]. Both classes encode several proteins which control cell growth, proliferation, DNA repair, invasion, motility, angiogenesis, apoptosis, and several other cellular processes; mutations of which can contribute to cancer development. These mutations work collectively for cancer progress [3]. Additionally, somatic variations in cancer genomes cause RNA alterations, including over-expression, splicing mutations, or gene fusions [4]. The significance genetic alterations on the growth of malignancies have become the subject of several studies. Hepatocellular carcinoma (HCC) is one of the most common, deadly, and rapidly spreading malignancies [5, 6]. HCC early diagnosis is significant to improve the prognosis and patient survival. HCC diagnosis depends mainly on imaging techniques including ultrasonography, magnetic resonance imaging, and computed tomography. However, early HCC diagnosis remains a challenge [7].

Nonlinear polarization is a benign, noncontact, and nonionizing modality [8, 9]. This modality has found wide applications particularly in disease diagnosis and image-guided surgeries [8], as different materials can expose different responses (reflection, absorption, and scattering) to stimulating light [10]. Nonlinear polarization can secure diagnostic characteristic signatures to differentiate between normal and tumor tissues [11]. The incident electric field |E| can induce distinctive zones of positive and negative charges [8,9,10]. The intensity of the applied electric field |E| determines how much charge polarization could be developed in any particular material [11, 12]. The generated dipole moment can switch its energy and release an electric field at the exact same frequency (Rayleigh scattering) [13,14,15,16]. Strong stimulating light and macromolecule could interact more effectively in nonlinear polarization, with the evolution of characteristic signatures [17]. Numerous molecules can be stimulated by strong irradiation; the excited state can then serve as the low energy state for an extra stimulation [18]. The intense light interaction can result in the generation of new resonance frequencies related to all energy differences. Nonlinear polarization includes strong stimulating electric field, with the evolution of new electric waves. The candidate materials for second-order nonlinear polarization are molecules with significant charge transfer and electronic transitions [19]. On the other hand, hyperspectral imaging (HSI) is a powerful noninvasive optical technique for numerous biomedical applications [20,21,22,23]. HSI can be employed for tumor diagnosis and detection during surgical operations [24,25,26]. HSI is candidate for morphological and biochemical information of biological tissues; it can enable a coincident collective measurement of both spatial and spectral data [20, 21]. HSI can offer precise measurement of characteristic RNA optical signatures. Moreover, mutations in RNA structure due to HCC could be precisely monitored via nonlinear polarization signatures. The change of incident electric field amplitude causes the induced dipoles to oscillate [24,25,26]. Intense electric field can secure nonlinear polarization with the generation of new frequencies [19]. RNA mutations due to HCC could alter the nonlinear polarization response. Such response could provide virtual fingerprint information for normal and cancerous macromolecules [17]. In this study, optical approach based on nonlinear polarization is described as a prominent platform for the spectroscopic and spatial characterization of DNA and RNA in HCC patients.

Subjects and methods

Subjects

This study included five male patients with primary HCC, whose diagnosis was established in accordance with the EASL's recommendations and on the basis of histological sample. Five healthy male volunteers of similar ages were also recruited in the research as healthy controls. Every individual gave his informed agreement, and the study was authorized by the Ain-Shams University Hospitals' ethical committee for research. Furthermore, the study was conducted in accordance with the guidelines and suggestions of the Declaration of Helsinki.

Laboratory examines

Two blood samples were taken from each participant to prepare whole blood in vacutainer tubes with sodium salt of ethylene-diamine-tetra-acetic acid (Na2-EDTA, final concentration of 1.5 mg/mL), an agent that prevents blood clots by binding to calcium in the blood. Total RNA was purified from whole blood and the entire blood count was measured.

Complete blood count (CBC) investigation

The Z2TM Coulter Counter®, Analyzer, Coulter Electronics, USA, was used to measure total leukocyte count (TLC), hemoglobin (Hgb), red blood cell (RBC) count, and platelet count (PLT).

Genomic DNA extraction and total RNA purification

Following the manufacturer's instructions, genomic DNA was isolated using the QIAamp DNA Mini-Kit technique (Qiagen, Hilden, Germany). DNA samples were quantified and their purity was evaluated using the NanoDrop® (ND)-1000 spectrophotometer (Nano-Drop Technologies, Inc., Wilmington, DE, USA). Using a QIAamp RNA blood mini-kit (Qiagen, Hilden, Germany), total RNA was extracted and purified in accordance with the manufacturer's instructions.

Nonlinear polarization measurements

Biomedical applications for nonlinear polarization are appealing. This method can provide extensive knowledge on the chemical and physical characteristics of whole DNA and RNA. A tiny lens was utilized to concentrate a laser source (10 mw at 656 nm) in order to excite the evaluated total DNA and RNA samples. A hyperspectral camera was used to gather the resonance frequency (scattered and re-emitted). Hyperspectral camera, with 3.16 nm resolution, was employed to acquire resonance frequencies over the range 395: 1100 nm (Fig. 1).

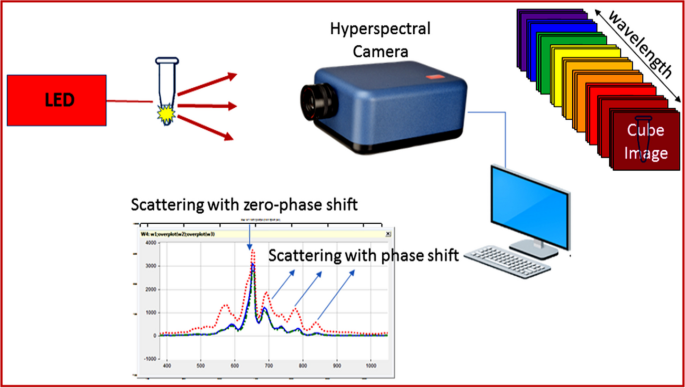

Fig. 1
figure 1

Schematic illustration of nonlinear polarization measurements for total DNA and RNA

Full size image

The collected signals were analyzed via customized digital signal processing technique for frequency domain evaluation. This algorithm was employed to evaluate the phase difference between total DNA, RNA (control). Mutation in RNA macromolecule structure due to gene disorder could result in change in optical properties with change nonlinear polarization signature and phase shift. Signature change of RNA due to HCC mutation was captured and processed. The phase and frequency responses were calculated in an attempt to determine both DNA and RNA spectral signature. This characteristic may serve as a baseline to track any genetic modifications to total RNA structure due to HCC tumors.

Statistical analysis

The SPSS statistics program version-23 software package (SPSS Inc., Chicago, IL, USA) was used for all statistical analyses. The data are shown as mean SD. Using the (HCC) group as the comparison group, statistical significance between all groups was examined (*p 0.001, **p 0.01, #p 0.05). The Pad-Prism software programmer, version 8 (Graph-Pad Software, La Jolla, CA), was used to create statistical analysis graphics.

Results and discussion

Participants' clinical and demographic features

The field of care testing toward the analysis of blood lack nowadays raped and simple test techniques for biomarkers. In this study, we have developed a novel DNA/RNA genetic signature via nonlinear polarization with hyperspectral imaging for helping hepatocellular carcinoma early diagnosis.

Table 1 presents the participant's clinical and demographic details. According to a prior study, the higher baseline platelet level and lower baseline hemoglobin may be associated to possible prognostic factors for cancer.

Table 1 Clinical and demographic data characteristics
Full size table

Characterizing the nonpolarized signature of DNA/RNA control

The most prevalent malignant primary liver tumor is hepatocellular carcinoma (HCC) that usually develops from the progression of cirrhosis. In terms of the pathological observation, many pathological stain-based diagnosis studies are performed on tissue specimens and cells. Staining is time-consuming. With the help of hyperspectral imaging by light polarization signature of DNA/RNA in specimen, it is possible to observe specimens without staining or fixation.

A study by Hashimoto et al. [27] conducted a computer-aided diagnosis on liver pathological samples which were hematoxylin and eosin (H & E) stained. Applying hyperspectral imaging (HSI) to the same samples, the accuracy improvement has reached to 24% for fibers and 5% for cytoplasm. So, DNA/RNA genetic signature via nonlinear polarization with hyperspectral imaging is possible help to hepatocellular carcinoma early diagnosis.

Total DNA and RNA under polarized light can provide information regarding chemical structure links and dielectric characteristics. Light emission and absorption can be used to assess the dielectric characteristics of macromolecules. Due to mutations in macromolecule (DNA and RNA) chemical structure, the harmonic oscillation signature could offer a distinctive signature [28]. The scattered and re-emitted fingerprint for total DNA and RNA (control) is demonstrated in Fig. 2 (mean of 5 samples).

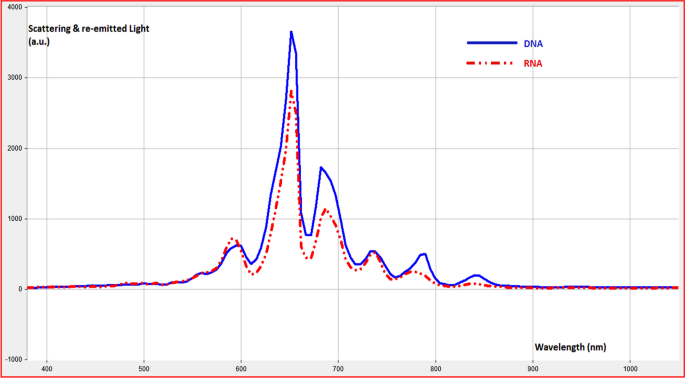

Fig. 2
figure 2

Resonance harmonic oscillations of whole DNA and RNA (control) samples irradiated by a laser source at 656 nm (scattered and returned energy)

Full size image

In an attempt to conclude spectral oscillation signature, normalized (scattered and re-emitted) signatures were calculated to investigate polarized light intensity (Fig. 3).

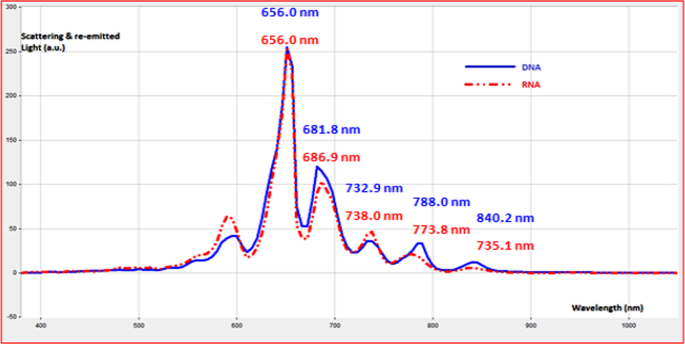

Fig. 3
figure 3

Normalized harmonic oscillations (scattered and re-emitted radiation) of total DNA and RNA (control) after being irradiated with laser source at 656 nm

Full size image

Light polarization signature of DNA/RNA (control)

Nonpolarized signature of total DNA and RNA could be employed to offer platform for determining the spectral fingerprint signature of both total DNA and RNA. Characteristic resonance frequency for each sample is represented in Table 2.

Table 2 Charactersitic light polarization signature of total DNA/RNA (control)
Full size table

Total DNA demonstrated characteristic resonance frequencies that differ from total RNA at 2nd, 3rd, 4th, 5th harmonic. Variable polarization states can be noticed by varying the total DNA and RNA structural arrangement with variable light absorption (attenuation). Signal intensity of total DNA and RNA signature is demonstrated in Table 3. Nonpolarized signature attenuation offered another path to differentiate between total DNA and RNA spectral signatures.

Table 3 Attenuation of transmitted light polarization of total DNA and RNA samples
Full size table

Frequency changes and phase differences of DNA/RNA (control)

In an effort to distinguish between the spectral fingerprint characteristics of total DNA and RNA control samples via change in frequency response, harmonic oscillations (scattered and re-emitted) radiations were processed using rapid Fourier transform (Fig. 4).

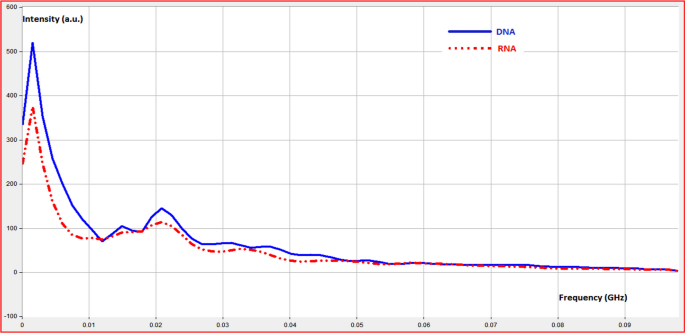

Fig. 4
figure 4

Frequency change of total DNA and RNA (control)

Full size image

Briefly, for the first time, blood analysis by nonlinear polarization with hyperspectral imaging has demonstrated the potential use of DNA/RNA genetic signature in blood spectral biomarkers as a novel alternative for hepatocellular carcinoma diagnosis, which could be used for screening purposes.

Total DNA demonstrated characteristic frequency response that could be discriminated from total RNA. DNA demonstrated spectrum band starting from 0.0044 to 0.0118 GHz compared with RNA spectrum lines. In an attempt to explicitly discriminate between total DNA and RNA, phase change was investigated. Change in frequency signal phase can be considered as a potent tool to discriminate the spectral signatures of both total DNA and RNA (Fig. 5). DNA can be efficiently distinguished from RNA via phase shift. While DNA demonstrated phase shift dominates at 0.088 GHz, RNA dominates at 0.106 GHz (Fig. 5). These stage shifts could be attributed to DNA's distinct chemical composition and dielectric features from RNA.

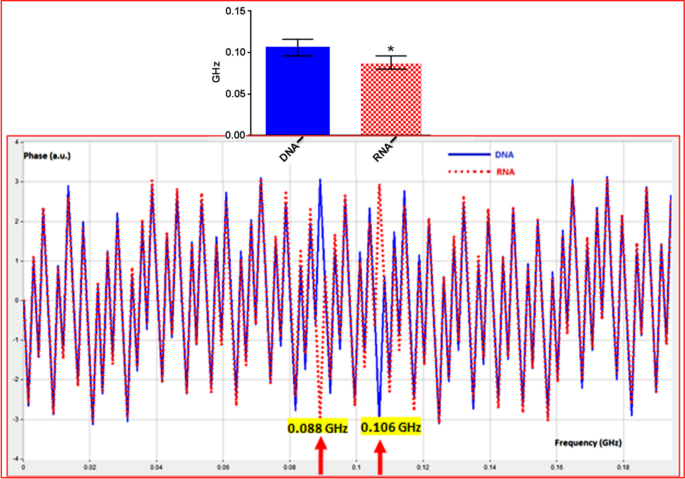

Fig. 5
figure 5

Phase difference between DNA and RNA

Full size image

Impact of HCC tumor on RNA nonlinear polarization signature

The optoelectronic and dielectric characteristics of RNA may change along with HCC-related changes. Re-emitted light radiation at resonance frequencies could provide a fingerprint sign for chemical composition and physical characteristics. The nonlinear response of RNA (control) was investigated to RNA (HCC) for early HCC diagnosis (Fig. 6).

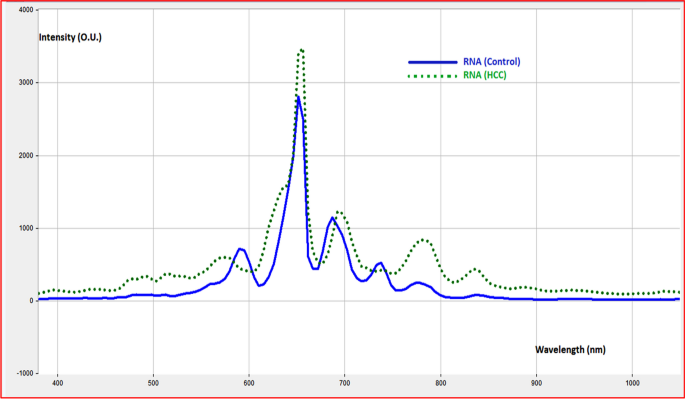

Fig. 6
figure 6

Scattered and re-emitted radiation light of RNA (control) and RNA (HCC) after being irradiated with laser source at 656 nm

Full size image

To counteract the impact of the intensity of polarized light, normalized signatures (scattered and re-emitted radiations) were determined (Fig. 7).

Fig. 7
figure 7

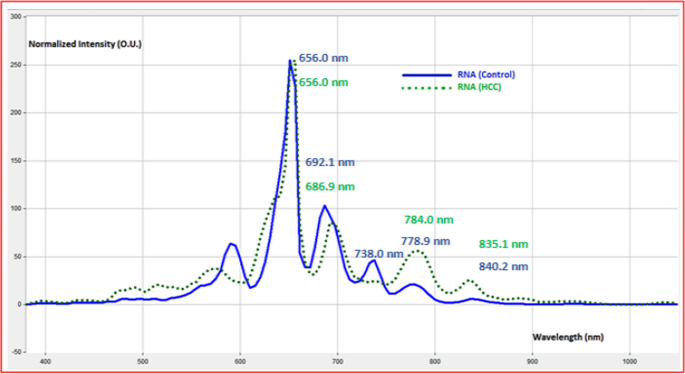

Normalized scattered and re-emitted radiation light of RNA (control) and RNA (HCC) after being irradiated with laser source at 656 nm

Full size image

The re-emitted signature could be distinguished due to changes in molecular-electronic configuration and absorber size in the order of (nm). The resonance frequency for RNA (control) to RNA (HCC) is shown in Table 4.

Table 4 Characteristic light polarization signature of RNA (control) and RNA (HCC)
Full size table

Various polarization states produced by various structural configurations can exhibit variable light attenuation. Table 5 lists the attenuation of the investigated samples.

Table 5 Attenuation of transmitted light polarization (scattered and re-emitted) of RNA (Control) and RNA (HCC)
Full size table

Impact of HCC tumor on RNA frequency changes and phase differences

To distinguish between RNA (control) and RNA (HCC), nonlinear signature was processed using a quick Fourier transform. RNA (HCC) demonstrated characteristic frequency signals at 0.006, 0,014, and 0,022 MHz. These signals could offer good discrimination between RNA (HCC) and RNA (control) (Fig. 8).

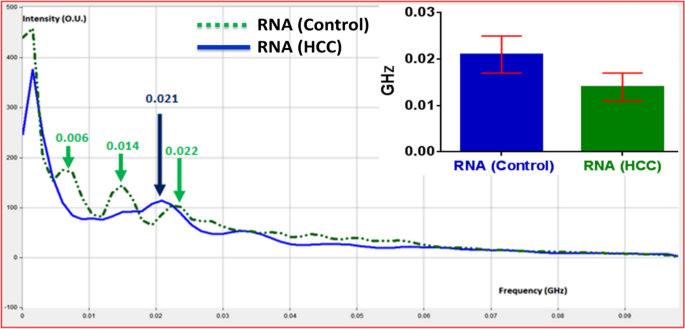

Fig. 8
figure 8

Determination of RNA resonance frequency change due to HCC

Full size image

Phase difference between RNA (control) and RNA (HCC) was investigated. Whereas RNA (control) dominates at 0.014 and 0.072 MHz, RNA (HCC) dominates at 0.021 and 0.032 MHz (Fig. 9). Phase shift could offer good discrimination between RNA (control) and RNA (HCC). Nonlinear polarization could secure facile HCC diagnosis.

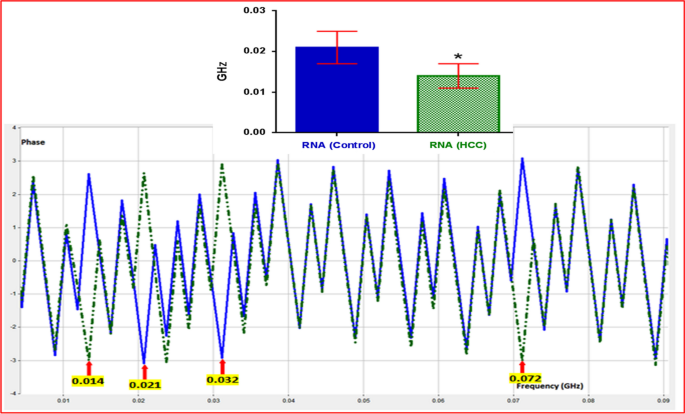

Fig. 9
figure 9

Phase difference between RNA (control) and RNA (HCC)

Full size image

Ten signal measurements of the DNA (control), RNA (control), and RNA (HCC) responses were calculated into a histogram for the frequency distribution. The DNA (control), RNA (control), and RNA (HCC) all had standard deviations of 0.164, 0.155, and 0.146, respectively. The RNA (HCC), DNA (control), and RNA mean values are 0.091, 0.08, and 0.123, respectively. We notice that the mean values shift to right when the patient suffering from HCC cancer (Fig. 10).

Fig. 10
figure 10

The calculated histogram for RNA, DNA, and RNA (HCC)

Full size image

Conclusion and future perspective

Nonlinear polarization secured characteristic signature of total DNA (control) and RNA (control). Total DNA demonstrated characteristic resonance frequency that differs from total RNA at 2nd, 3rd, 4th, 5th harmonic with different light attenuation. DNA demonstrated characteristic spectrum frequency response lines starting from 0.0044 to 0.0118 GHz compared with RNA spectrum lines. While DNA demonstrated a phase shift dominates at 0.88 GHz, RNA leads at 0.106 GHz. These characteristic signatures could be employed to monitor any genetic changes related to HCC tumors. RNA (HCC) demonstrated phase shift at 0.014, 0.021, 0.032, and 0.072 MHz from RNA (control). This novel modality could pave the way for facile diagnosis of different tumors.
