The novel coronavirus SARS-CoV-2 is currently a global threat to health and economies. Therapeutics and vaccines are in rapid development; however, none of these therapeutics are considered as absolute cure, and the potential to mutate makes it necessary to find therapeutics that target a highly conserved regions of the viral structure.
In this study, we characterized an essential but poorly understood coronavirus accessory X4 protein, a core and stable component of the SARS-CoV family. Sequence analysis shows a conserved ~ 90% identity between the SARS-CoV-2 and previously characterized X4 protein in the database. QMEAN Z score of the model protein shows a value of around 0.5, within the acceptable range 0–1. A MolProbity score of 2.96 was obtained for the model protein and indicates a good quality model. The model has Ramachandran values of φ = − 57o and ψ = − 47o for α-helices and values of φ = − 130o and ψ = + 140o for twisted sheets.
The protein data obtained from this study provides robust information for further in vitro and in vivo experiment, targeted at devising therapeutics against the virus. Phylogenetic analysis further supports previous evidence that the SARS-CoV-2 is positioned with the SL-CoVZC45, BtRs-BetaCoV/YN2018B and the RS4231 Bat SARS-like corona viruses.
World Health Organization (WHO) declared the novel coronavirus 2019-nCoV previously referred to as Wuhan-Hu-1, and now officially named SARS-CoV-2 the cause of the COVID-19 outbreak a public health emergency of international concern in January, 2020 [1, 2]. COVID-19 has become a major threat to health and economies around the world. More so, a second wave of spikes has been recorded across Europe, USA, and South America recently. Since the isolation of SARS-CoV-2 in 2019, laboratories have been in the race for therapeutics and vaccines in many countries [3, 4]. This race has yielded many drugs currently with Emergency Use Authorization (EUA) status including remdesivir , dexamethasone, convalescent plasma, and monoclonal antibodies (MABs). Several vaccine candidates are in the final stages of clinical trials from pharmaceutical companies including Johnson & Johnson, Novavax (NVAX), AstraZeneca’s (AZN), Moderna (MRNA), and Pfizer (PFE). Two of these pharmaceutical companies, Pfizer (PFE) and Moderna (MRNA), recently announced their vaccines to the over 90% and 94.5% safe and are currently being administered under EUA. So far, none of the current therapeutics in use, or vaccine candidates, has been certified to be an absolute cure. One of the major reasons amongst many of the possible causes for this setback may be based on very recent evidence that the coronavirus undergoes quick mutation in its genome , as strains genetically different from the originally sequenced strain have been isolated. Tackling this challenge will require targeting a highly conserved and stable region of the virus core structure as the bedrock for the design of new therapeutics.
Viruses have a relatively small genome and usually need a host to suitable execute their life cycle. The Coronaviridae have a genome spanning 26 to 32 kb positive-sense RNA [7,8,9]. Coronaviruses (CoVs) like the severe acute respiratory syndrome (SARS) and Middle-East respiratory syndrome (MERS) viruses are primarily zoonotic . Humans are a complex species in terms of genome; however, the human system is highly susceptible to this “respiratory-philic” pathogenic virus, which if untreated is fatal. These class of viruses have a conserved small integral membrane CoV envelope protein necessary for budding, packaging, envelope formation, as well as a contributing factor to its pathogenesis . Understanding the biochemistry and molecular structure of this highly conserved structure is a major factor needed to kill the pathogen, as designing therapeutics is totally dependent on understanding the structural composition. Members of this group of coronaviruses have four structural proteins namely, membrane (M), spike (S), nucleocapsid (N), and envelope (E) . They also have the X4 (ORF7a) accessory proteins, but their functions are still not yet well understood. The coronavirus X4 protein is vital to the survival and replication of the coronavirus as recent studies show that X4 is involved during the replication cycle of the SARS-CoV . Targeting this protein with suitable binding moieties that could interrupt the function of this protein may support other existing strategies to treat this infection. In this study, we did not focus on targeting the X4 protein rather, we characterized molecular the structure of the SARS-CoV-2 X4 protein, alongside some predicted biochemical features as a bedrock for further studies; providing valuable information for the design of therapeutics. We also further compared it with other homologues in other species as supportive evidence for its lineage amongst the Coronaviridae.
Sequence data and alignment
The genome sequence data of the isolated SARS-CoV-2virus was sourced from the GenBank database (MN908947.3, which has 100% homology with NC_045512.2). We considered the nucleotide sequence between 26,683 and 29,903 as the region within which to find the location of the X4 protein, since based on previous studies, the X4 sequence is located in this region coding for several of the accessory proteins. EMBOSS transeq and backtranseq were used for sequence translation and back translation, respectively . Clustal Omega software package was used for all alignments between SARS corona virus X4 protein and SARS-CoV-2 . Within this sequence, we found a portion of the 83 amino acid residues with homology to the SARS corona virus X4 protein, and it is the sequence of interest for further studies.
The homology modeling of the SARS-CoV-2 aligned segment was done using the SWISS-MODEL (http://swissmodel.expasy.org) for automated comparative modeling of three-dimensional (3D) protein structures . QMEAN (Qualitative Model Energy Analysis) was used for the assessment of the model protein quality . A considerable number of alternative models were produced, from which subsequently the final model was selected based on produced scores. We employed MolProbity (version 4.4) to evaluate the model global and local protein quality [17,18,19], and Ramachandran plot for torsion angles between residues. In sequence order, φ is the N(i − 1), C(i), Ca(i), N(i) torsion angle and ψ is the C(i), Ca(i), N(i), C(i + 1) torsion angle. The φ values were plotted on the x-axis while the ψ values on y-axis.
3D structure comparison
The 3D modeling of the SARS-CoV-2 genome translated segment was followed by a structural comparison with the X4 protein 3D structure (PDB: 1YO4) using the UCSF Chimera . High-quality images were generated and presented using amino Pymol molecular visualizer .
Protein physiochemical parameters
Calculation of the physiochemical parameters of proteins is a sub-function of the ExPASy server, basically for protein identification, and was used for determining the physiochemical parameters such as theoretical isoelectric point, molecular weight, amino acid composition, extinction coefficient, and instability index .
We employed Tamura-Nei model for phylogenetic analysis and is based on the maximum likelihood using MEGA5 program .
The full genome of the SARS-CoV-2 consists of 29,903 nucleotides but here, nucleotides between 26,683 and 29,903 were considered as the portion coding for the group of proteins from which we intended to find the particular protein of our interest, and direct translation of this segment of nucleotides produced a sequence of 1004 amino acids after the deletion of existing stop codons (Fig. 1). The deletion of stop codons was necessary as the 3D homology tool used for the modeling of the reference protein of interest does not recognize them. We used the highlighted segment in Figs. 1 and 2 for the predicted 3D structure modeling in comparison with the X4 protein 3D structure (Fig. 3).

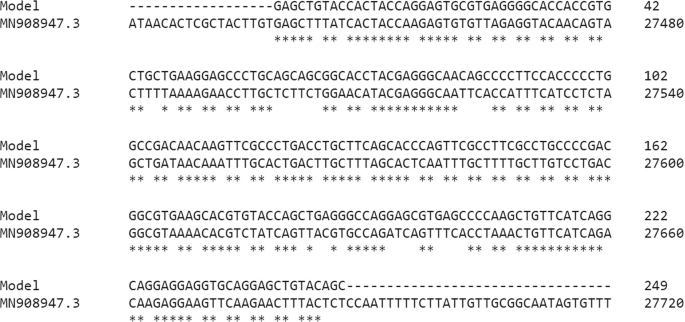

The amino acid sequence of the model protein was back-translated (Fig. 4) to generate the corresponding nucleotide sequence which was then aligned with the SARS-CoV-2 full genome (Fig. 5). This back-translated sequence alignment shows that the homology between the model protein sequence and the SARS-CoV-2 complete genome is located between 27,439 and 27,684.
The result of the QMEAN parameter scores of the model protein based on the composite scoring function (which evaluates several structural features of the model protein) are presented in Figs. 6, 7, and 8 and Table 1. The absolute quality estimate of the model is expressed in terms of how well the model score agrees with the expected values from a representative set of high-resolution experimental structures (Fig. 6). There are two global score values, QMEAN4 (for linear combination of statistical potential) and QMEAN6 (assessing prediction-based consistency of structural features). Both global scores are originally in a range [0,1] with one being good. By default they are transformed into Z scores to relate them with what we would expect from high resolution X-ray structures. The local scores are a linear combinations of the 4 statistical potential terms as well as the agreement terms evaluated on a per residue basis. They are as well in the range [0,1] with one being good (Fig. 7).
When compared to the set of non-redundant protein structures, the QMEAN Z scores as shown in Fig. 8 were close to 0. Good models have scores < 1 and are often located in the dark zone.
The restriction of the Ramachandran angles in the protein to certain values is visible in the Ramachandran plot in (Fig. 9). The plot shows that each type of secondary structure elements occupies its characteristic range of φ and ψ angles. The horizontal axis shows φ values, while the vertical shows ψ values. Each dot on the plot shows the angles for an amino acid. The counting starts in the left hand corner from − 180 and extend to + 180 for both the vertical and horizontal axis. This is a convenient presentation and allows clear distinction of the characteristic regions of α-helices and β-sheets. An exception from the principle of clustering around the α- and β-regions can be seen on the right plot of Fig. 9. In this case, the Ramachandran plot shows torsion angle distribution for one single residue, glycine. Glycine does not have a side chain, which allows high flexibility in the polypeptide chain, making forbidden rotation angles accessible. This explains why glycine is often found in loop regions, where the polypeptide chain needs to make a sharp turn. This is further depicted in the model protein secondary structures (Fig. 10). Model and template protein comparative physiochemical parameters ProtParam were obtained from the amino acid sequences of the individual proteins (Tables 3 and 4).
The phylogeny tree with the highest log likelihood (− 80762.5778) based on the model protein sequence is shown in Fig. 11. The percentage of trees in which the associated taxa clustered together is shown next to the branches as conducted in MEGA5.
Proteins that share a high sequence similarity are likely to have very similar three-dimensional structures and by implication similar function [24, 25]. In this study, the target protein was modeled using the SARS-CoV protein X4 as template. This selection was based on the high resolution and its identity with the target protein which is as high as 91.57%. The SARS-CoV-2 nucleotides between 26,683 and 29,903 were considered as the portion coding for a group of protein, of which our target protein of interest is found, and directly translated to produce a sequence of 1004 amino acids (Fig. 1). Structural differences were noticed when alignment analysis was carried out on the sequence (Figs. 2 and 3). The percentage amino acid sequence identity between the model and the template protein shows a high level of conservation, with 90% identity observed between both sequences, showing that the conserved domains are predominant. Also, the alignment between the back-translated model protein nucleotides and the 27,439 to 27,684 nucleotide portion of the SARS-CoV-2 complete genome shows that the model protein coding sequence is located between 27,439 and 27,684 nucleotides of the viral genome (Figs. 4 and 5).
The absolute quality estimate of the model is expressed in terms of how well the model score agrees with the expected values from a representative set of high-resolution experimental structures (Fig. 6). The QMEAN scores were transformed into Z scores to decipher the model of a high resolution X-ray structure, and the values are within range (Fig. 7). Our study shows the Z score of the model protein has a value of around 0.5, which falls within the acceptable range 0–1, as indicated in Fig. 8 and such a score is an indication of a relatively good model as it is close to zero which is the average Z score for a good model . Lower MolProbity (MP scores) clash score values are expected to be an indication of good models as proven by the clash score value (Table 2) exhibited by the experimental protein that was modeled for the purpose of this study [17,18,19]. Rotamer outliers asymptote to a value of < 1% at high resolution, a general-case Ramachandran outliers to < 0.05%, and Ramachandran favored to 98%. With a 3.07 clash score, and a 76.54% Ramachandran favored region value as compared to the Ramachandran outliers and rotamer outliers individual values of 4.94% and 27.03%, respectively, we arrived at a MolProbity score of 2.96. This value is low enough to indicate the quality of a good model in the experimental protein .
The repetitive nature of secondary structures is due to the repetitive conformation of the residues and, ultimately, repetitive values of φ and ψ. The varied secondary conformations can be differentiated by their φ and ψ values with the values of different secondary conformations mapping to different areas of the Ramachandran plot . The Ramachandran plot peptides have points clustered about the values of φ = − 57o and ψ = − 47o which are the average values for α-helices while the plot for twisted beta sheets have points clustered about the values of φ = − 130o and ψ = + 140o which are the average values for twisted sheets. The core regions (green in Fig. 9) contain the most favorable combinations of φ and ψ and contain the greatest number of points. The result also shows a small third core region in the upper right quadrant. This is called the allowed region and can be situated around the core regions or unassociated with a core region and it contains fewer data points than the core regions . The remaining areas of the plot are considered disallowed. Since glycine residues have only one hydrogen as side chain and has φ and ψ values of + 55o and− 116o, respectively which does not exhibit steric hindrance and for that reason positioned in the disallowed region of the Ramachandran plot as shown in the right hand side plot (Fig. 9). The extinction coefficient reveals how much light a protein absorbs at a certain wavelength. It is useful to have an estimation of this coefficient for monitoring a protein in a spectrophotometer when purifying it, and estimating the molar extinction coefficient determined from the amino acid composition  which is shown in Table 3.
It has been shown that the identity of the N-terminal residue of a protein plays an important role in determining its stability in vivo [29,30,31,32]. A protein with instability index smaller than 40 is predicted as stable; and above 40 is considered unstable [33, 34]. The comparative instability index values for the template and model proteins were 66.61 and 56.58, respectively, showing both are unstable proteins. A protein’s aliphatic index is the relative volume occupied by aliphatic side chains (isoleucine, alanine, leucine, and valine). It may be regarded as an indication for the increase in thermostability of globular proteins. The aliphatic index of the experimental proteins were calculated according to the following formula .
Aliphatic index = X(Ala) + a × X(Val) + b × [X(Ile) + X(Leu)]
where X(Ala), X(Val), X(Ile), and X(Leu) are mole percent (100 × mole fraction) of alanine, valine, isoleucine, and leucine. The “a” and “b” coefficients are the relative volume of valine side chain with a value of a = 2.9 and of Leu/Ile side chains b = 3.9 to the side chain of alanine. The aliphatic index calculated for the experimental protein shows a higher thermostability for the model protein than the template.
It has been shown that α-helices are more stable, robust to mutations and designable than β-strands in natural proteins . The template and model proteins respectively have a total of 87 and 83 amino acid residues (Table 4) with the composition of individual residues shown in Table 3. As shown in Fig. 10, the model protein which shares a structural homology with the template is predominantly occupied by residues forming beta sheets and coils, with none forming helices. The instability observed for these two proteins from their physiochemical characteristics show that the unavailability of residues forming alpha helix may be the accountable factor. In this study, we also compared a genome of interest to similar genomes in the GenBank database to predict the evolutionary relationships between homologous genes represented in the genomes of each divergent species [8, 23, 24]. Organisms with common ancestors were positioned in the same monophyletic group in the tree and the same clade where the genome of interest (SARS-CoV-2) is positioned with the SL-CoVZC45, BtRs-BetaCoV/YN2018B, and the RS4231, all which are Bat SARS-like corona viruses . This shows that the four viral strains share a common source with shorter divergence period. TW1 virus, a SARS corona virus is the most distantly related based on its branch length and as such can be regarded as an outlier in the tree.
We modeled the target protein using the hypothetical protein X4 as template based on a high similarity index of 91.57%, as revealed by sequence analysis where the percentage amino acid sequence identity between the model and the template protein shows a high level of conservation. The QMEAN value show that the model generated for study here is within the acceptable standard and amenable to structural analysis, including X-ray resolution. All the predicted structural parameters for this model protein studied such as the MolProbity (MP scores) clash score, staggered χ angles, Ramachandran values (φ and ψ), all demonstrate a protein that is suitable for further study and a potential target for therapeutics and vaccines. However, the comparative instability index values for the template and model proteins were 66.61 and 56.58, respectively, suggesting that the protein may be too sensitive for in vitro studies. On the other hand, the aliphatic index shows that the thermostability of the model protein is higher than the template and may withstand more harsh conditions during experimental studies. Our results supporting previous studies, show that the SARS-CoV-2is positioned with other Bat SARS-like corona viruses including SL-CoVZC45, BtRs-BetaCoV/YN2018B, and the RS4231.
Availability of data and materials
Data are available on the appropriate databases cited.
Severe acute respiratory syndrome coronavirus 2
2019 novel coronavirus
Severe acute respiratory syndrome coronavirus
Middle East respiratory syndrome
Severe acute respiratory syndrome
Protein Data Bank
Acute respiratory disease
National Center for Biotechnology Information
International Nucleotide Sequence Database Collaboration
Maringer K, Fernandez-Sesma A. Since January 2020 Elsevier has created a COVID-19 resource centre with free information in English and Mandarin on the novel coronavirus COVID-19. The COVID-19 resource centre is hosted on Elsevier Connect, the company’s public news and information 2020.
Campillo-Balderas JA, Lazcano A, Becerra A (2015) Viral genome size distribution does not correlate with the antiquity of the host lineages. Front Ecol Evol 3. https://doi.org/10.3389/fevo.2015.00143
Hänel K, Stangler T, Stoldt M, Willbold D (2006) Solution structure of the X4 protein coded by the SARS related coronavirus reveals an immunoglobulin like fold and suggests a binding activity to integrin I domains. J Biomed Sci 13(3):281–293. https://doi.org/10.1007/s11373-005-9043-9
Li W, Cowley A, Uludag M, Gur T, McWilliam H, Squizzato S, Park YM, Buso N, Lopez R (2015) The EMBL-EBI bioinformatics web and programmatic tools framework. Nucleic Acids Res 43(W1):W580–W584. https://doi.org/10.1093/nar/gkv279
Davis IW, Leaver-Fay A, Chen VB, Block JN, Kapral GJ, Wang X, Murray LW, Arendall WB, Snoeyink J, Richardson JS, Richardson DC (2007) MolProbity: all-atom contacts and structure validation for proteins and nucleic acids. Nucleic Acids Res 35(Web Server):375–383. https://doi.org/10.1093/nar/gkm216
Davis IW, Murray LW, Richardson JS, Richardson DC (2004) MolProbity: structure validation and all-atom contact analysis for nucleic acids and their complexes. Nucleic Acids Res 32(Web Server):615–619. https://doi.org/10.1093/nar/gkh398
Tamura K, Peterson D, Peterson N, Stecher G, Nei M, Kumar S (2011) MEGA5: molecular evolutionary genetics analysis using maximum likelihood, evolutionary distance, and maximum parsimony methods. Mol Biol Evol 28(10):2731–2739. https://doi.org/10.1093/molbev/msr121
Zhang B, Jaroszewski L, Rychlewski L, Godzik A (1997) Similarities and differences between nonhomologous proteins with similar folds: evaluation of threading strategies. Fold Des 2(5):307–317. https://doi.org/10.1016/S1359-0278(97)00042-4
Benkert P, Schwede T, Tosatto SC (2009) QMEANclust: estimation of protein model quality by combining a composite scoring function with structural density information. BMC Struct Biol 9(1):1–17. https://doi.org/10.1186/1472-6807-9-35
Gill SC, von Hippel PH (1989) Calculation of protein extinction coefficients from amino acid sequence data [published erratum appears in anal Biochem 1990 Sep;189(2):283]. Anal Biochem 182(2):319–326. https://doi.org/10.1016/0003-2697(89)90602-7
Fantini D, Vascotto C, Marasco D, D’Ambrosio C, Romanello M, Vitagliano L, Pedone C, Poletto M, Cesaratto L, Quadrifoglio F, Scaloni A, Radicella JP, Tell G (2010) Critical lysine residues within the overlooked N-terminal domain of human APE1 regulate its biological functions. Nucleic Acids Res 38(22):8239–8256. https://doi.org/10.1093/nar/gkq691
Sahay A, Piprodhe A, Pise M (2020) In silico analysis and homology modeling of strictosidine synthase involved in alkaloid biosynthesis in catharanthus roseus. J Genet Eng Biotechnol 18(1):44. https://doi.org/10.1186/s43141-020-00049-3
Chan JFW, Yuan S, Kok KH, KKW T, Chu H, Yang J et al (2020) A familial cluster of pneumonia associated with the 2019 novel coronavirus indicating person-to-person transmission: a study of a family cluster. Lancet 395(10223):514–523. https://doi.org/10.1016/S0140-6736(20)30154-9
OAD: conceptualization, methodology, data curation, software, writing—original draft preparation. ONO: visualization, validation, writing—reviewing and editing. OAS: visualization, investigation, supervision, writing—original draft preparation, reviewing, and editing. All authors read and approved the final version of the manuscript.
The authors declare that they have no competing interests.
