Flavanones from Sorghum bicolor selectively inhibit COX-2: in-silico and in-vivo validation

Abstract

Background

COX-2-specific inhibitors offer improved advantages over traditional NSAIDs. Plants are known to play critical roles in the discovery and developments of new pharmaceuticals. To the best of our knowledge, nothing has been reported so far on the selective inhibition of the cyclooxygenase by flavanones. The present study aims at evaluating the selective inhibition of COX-1 and/or COX-2 by flavanones from Sorghum bicolor.

Results

Flavanones demonstrate selective inhibition of COX-2 through the formation of hydrogen bonds. Eriodictyol forms two hydrogen bonds interactions (Tyr-371 and Ser-516) within the active site of COX-2, while it forms only one hydrogen bond (Met-521) with COX-1. Sorghum bicolor flavanone extract (SBFE) demonstrate hepatoprotective potentials by augmenting the antioxidant defense system of the liver and downregulate the expression of COX-2 while ineffective against COX-1. Histopathological analyses show that SBFE is effective in the prevention of HCl/ethanol-induced gastric injury in Wistar rats.

Conclusions

The side effects associated with current NSAIDs are as a result of selective inhibition of COX-1. Flavanones are potential selective inhibitors of COX-2. Sorghum bicolor flavanone extract (SBFE) demonstrates its anti-inflammatory potential through selective inhibition of COX-2. The virtual high throughput screening techniques adopted herein could help eradicate the corresponding rigors of identifying lead bioactive(s) components of plants.

Graphical abstract

Background

Inflammation is a biological reaction to disruption in the normal physiological processes [1]. It is a localized protective reaction of the tissues of the body to allergic or chemical irritation, injury, and/or infections. Inflammation is characterized by pain redness, swelling, and loss of functions [2].

Acute inflammation leads to the release of leukocytes, erythrocytes, and constituents of the plasma into the surrounding tissues affected by the inflammatory insults. Chronic inflammation always results from acute inflammation, when the latter remains uncorrected. Chronic inflammation leads to the release of lymphocytes and macrophages into the affected tissue, and it is closely associated with allergies, atherosclerosis, cancer, arthritis, and Alzheimer’s disease, as well as autoimmune diseases [3]. Non-steroidal anti-inflammatory drugs (NSAIDs) bring about their therapeutic effects through the inhibition of the cyclooxygenases (COX), the enzymes that produce the prostaglandins (PGs) [4]. Cyclooxygenase-1 (COX-1) is constitutive; its PGs protect the stomach and the kidney from damage, while cyclooxygenase-2 (COX-2) is induced by inflammatory stimuli; its PGs contribute to the pain and swelling associated with inflammation.

The anti-inflammatory effects of NSAIDs are due to the inhibition of COX-1 and COX-2. The unwanted side effects (irritation of the stomach lining and toxicity on the kidney) are as a result of the inhibition of COX-1 [4].

Chronic inflammation is often related to alcohol consumption [5]. Alcohol mediates activation of pro-inflammatory and anti-inflammatory genes in the liver [5]. Administration of hydrochloric acid (HCl) and ethanol produces ulcerative lesions and increases lipid peroxidation in the gastric mucosa, which plays a significant part in the pathogenesis of the mucosal lesion [6].

Herbal and natural products are known for their biological and pharmacological activities [6]. Several drug candidates have been identified from plants, due to their reduced offensive factors, effectiveness in the treatment of certain ailments, better patient tolerance, and relatively affordable [7]. Medicinal plants have been reported to possess anti-inflammatory properties [8].

Virtual screening is an in-silico high throughput technique of screening compounds against biological target(s) and evaluation of the scoring. This technique gives a swift evaluation of vast libraries and prune down the number of compounds in order to pinpoint the hit compound(s) [9]. Molecular docking remains the most used virtual screening technique [10] and has turn out to be increasingly efficacious [11, 12].

In the present study, a total of 800 phytochemicals characterized from 17 medicinal plants [13,14,15,16,17,18,19,20,21,22,23]; Allium sativum, Aloe vera, Curcuma longa, Cymbopogon citratus, Dracaena arborea, Hibiscus sabdariffa, Moringa oleifera, Nicotiana tabacum, Ocimum gratissimum, Psidium guajava, Telfairia occidentalis, Vernonia amygdalina, Ziginber officinale, Amaranthus spinosus, Phoenix dactylefera, Plukenetia conophorum, and Sorghum bicolor were screened against the catalytic sites of COX-1 and COX-2. Sorghum bicolor is used in traditional medicine, for the primary care of anemia [24, 25] and in the treatment of various infectious diseases.

Methods

Data collection and preparation

A library of 800 characterized phytochemicals from 17 reported medicinal plants were created [13,14,15,16,17,18,19,20,21,22,23]. The phytochemicals were obtained from literature and downloaded in the Structure data format (Sdf format) from the PubChem database (https://pubchem.ncbi.nlm.nih.gov). Open babel was used to convert phytochemicals from their sdf formats to the protein data bank (pdb) formats. The ligprep command line was used to convert phytochemicals from the pdb formats to the protein data bank charged format (pdqt formats). The structure of COX-2 in complex with a benzopyran, (2R)-6,8-dichloro-7-(2-methylpropoxy)-2-(trifluoromethyl)-2H-chromene-3-carboxylic acid (3NTG with a crystallographic resolution of 2.19 A° was adopted for virtual screening and docking because of its high resolution and a few numbers of co-crystallized compounds when compared with several other COX-2 protein in the PDB) [26] was downloaded from the protein data bank (http://www.rcsb.org). PyMOL plugin in Autodock/Vina was used to extract the receptor. The SWISS-PdbViewer software was used to rebuild missing residues and atoms of the human COX-2 [27]. The experimental animals were randomized based on their body weight and allocated into six groups of five rats each.

Structural modeling of human COX-1 and validation

The human amino acids fasta sequences of COX-1 with accession number AAH29840.1 was obtained from the PubMed repository; this was used to carry out the homology model of COX-1 using the Swiss model server (swissmodel.expasy.org). The model was built on 2OYE [28] template with an identity of 92.8 and X-ray crystallography resolution of 2.8 Å and grid coordinates set as obtained in the co-crystallized compound, x = 251.28, y = 108.48, z = − 39.57. The modeled protein structure was validated using the Procheck server (http://servicesn.mbi.ucla.edu/PROCHECK) [29]. The active site of the modeled protein was predicted with CASTP (sts.bioe.ulc.edu).

Molecular docking and virtual high throughput screening

Virtual high throughput screening (vHTS), a computational technique used to screen a pool of compounds library against the target receptor, was used to screen phytochemicals against the binding pocket of COX-2 [23]. The grid coordinates were set exactly like those of the co-crystallized compound, x = 26.73, y = 21.49, z = 17.16.

Validation of docking results

The co-crystallized ligand was re-docked into the catalytic site of COX-2 to validate the accuracy of the docking protocols [30, 31]. Root means square deviation (RMSD), a measure of the deviation of the co-crystallized from its initial geometry when re-docked, was used to access the deviation. When the value of the RMSD is less than 2.0 Å for the re-docked pose and the co-crystallized pose, the docking protocol is accurate and fit to be used for the docking of other ligands to the receptor [32].

Identification and preparation of plant materials

The Sorghum bicolor grains were purchased from Osiele market, Abeokuta, Ogun State, Nigeria. The plant was taxonomically identified and authenticated at the Department of Botany, Federal University of Agriculture, Abeokuta, Ogun State, Nigeria. The Sorghum bicolor grains were air-dried in the dark and grounded into powder form prior to extraction and isolation.

Knowledge-based extraction of flavanones from Sorghum bicolor

The vHTS technique employed revealed eriodictyol, a flavanone, as the lead. Hence, flavanones were extracted from the grains of sorghum bicolor using the method described by Bazzocchi et al. [33]. The finely grounded powdery Sorghum bicolor grains (900 g) were extracted with ethanol (5 L) in a soxhlet apparatus for a period of 24 h at around 80 °C. The solvent obtained from soxhlet extraction was evaporated under reduced pressure in a rotary evaporator at ≤ 50 °C. The crude extract obtained was dissolved in 2.5 L of dichloromethane and allowed to stand for 48 h. It was filtered; the filtrate was slowly poured into a separating funnel (2 L) placed onto a metallic stand. The filtrate was allowed to settle into immiscible phases, the organic phase (bottom layer), and the aqueous phase (top layer). The top layer was gently decanted off. The organic phase (bottom layer) was recovered and exposed in the dark for the volatile dichloromethane to escape, leaving the flavanone extract. The extract was weighed and recorded.

Calculations,

$$ {\displaystyle \begin{array}{c}\%\mathrm{Yield}=\frac{\mathrm{weight}\ \mathrm{obtained}}{\mathrm{Total}\ \mathrm{weight}}\times 100\%\\ {}\%\mathrm{Yield}=\frac{24.9\ g}{900\ g}\times 100\%\\ {}=2.77\%\end{array}} $$

Experimental animal

A sample size of 30 male Wistar rats was determined by using the G*Power 3 software for Mac OS [34], with the power set at 0.80, alpha probability at 0.05, and the effect size at 0.25. The Wistar rats weighing between 150 and 250 g were purchased from the Institute for Advanced Medical Research and Training (IAMRAT), College of Medicine, University of Ibadan, Nigeria. They were acclimatized for 2 weeks before the onset of the experiment. The animals were housed in a wooden cage with good aeration. The animals were subjected to 12 h of light and 12 h of darkness. The animals were given standard diets and water ad libitum. The study was carried out in accordance with the Code of Ethics of the World Medical Association (Declaration of Helsinki) for experiments in animals. The experimental protocols were also reviewed and approved by the Institutional Animal Ethics Committee (IAEC).

Experimental protocol

The experimental animals were randomized based on their body weight and allocated into six groups of five rats each:

• i. Group A (basal control): animals received normal chow and water ad libitum.

• ii. Group B (negative control): Animals received 1 ml distilled water p.o for 8 days, followed by a single oral administration of 0.15 M HCl/60% ethanol (ratio 1:1) [35] on the eight day and were sacrificed 5 h after.

• iii. Group C (positive control): Animals received 50 mg/kg body weight Diclofenac p.o for 8 days, followed by a single oral administration of 0.15 M HCl/ 60% ethanol (ratio 1:1) on the eight day and were sacrificed 5 h after.

• iv. Group D (test group): animals received 50 mg/kg body weight Sorghum bicolor extract p.o for 8 days, a single oral administration of 0.15 M HCl/60% ethanol (ratio 1:1) on the eight day, and were sacrificed 5 h after.

• v. Group E (test group): received 100 mg/kg body weight Sorghum bicolor extract p.o for 8 days, a single oral administration of 0.15 M HCl/60% ethanol (ratio 1:1) on the eight day, and were sacrificed 5 h after.

• vi. Group F (test group): received 100 mg/kg body weight Sorghum bicolor extracts p.o for 8 days and were sacrificed 5 h after.

  Note: animals’ chow and water were withdrawn 24 h prior to sacrifice.

Sacrifice, blood collection, and organs excision

The experimental animals were sacrificed through cervical dislocation. The blood samples were collected via abdominal vein and centrifuged at 2500 rpm for 10 min. The supernatants were collected into clean Eppendorf tubes and stored for further biochemical assays. The Livers and the stomachs were also harvested, cleansed of superficial connective tissue in ice-cold normal saline, and later blotted with tissue paper and weighed. The tissues were homogenized for biochemical assays.

Preparation of tissue homogenates

The livers tissues were rinsed in cold sodium phosphate buffer (1:3, w/v), and subsequently homogenized with phosphate buffer, pH 7.4. The homogenate was centrifuged at 4000 rpm for 10 min, after which the clear supernatants were used for the various biochemical assays.

Biochemical assays

Determination of serum alanine aminotransferase activity

The alanine aminotransferase (ALT) activity was determined according to the method described in Lab Kit, Canovelles, Barcelona. One tablet of the substrate was dissolved in 15 ml of buffer, 30 μl of the sample was added to 300 μl of the working reagent, and the absorbance was taken every minute for 3 min at 340 nm [36].

Determination of serum aspartate aminotransferase activity

Aspartate aminotransferase (AST) activity was determined according to the method described in Lab Kit, Canovelles, Barcelona. One tablet of the substrate was dissolved in 15 ml of the buffer and 30 μl of the sample was added to 300 μl of the working reagent and the absorbance was taken every minute for 3 min at 340 nm [36].

Determination of liver superoxide dismutase activity

Superoxide dismutase activity was determined by the method of Zou et al. [37]. The medium for the estimation was prepared as shown in the table below and the reaction was allowed to run for 60 s each time for 3 min before the absorbance was read against the reagent blank at 340 nm.

	Test (ml)	Blank (ml)
Buffer	0.10	0.15
Distilled water	0.83	0.83
Sample	0.05	--------
Incubate at 25°C for 10 min.
Pyrogallol	0.02	0.02

Determination of lipid peroxidation

Lipid peroxidation was determined by measuring the formation of thiobarbituric acid reactive substances (TBARS) according to the method of Buege and Aust [38].

This method is based on the reaction between 2-thiobarbituric acid (TBA) and malondialdehyde.

Determination of liver reduced glutathione level

The method of Beutler et al. [39] was followed in estimating the level of reduced glutathione (GSH). Then, 0.2 ml of sample was added to 1.8 ml of distilled water and 3 ml of precipitating solution was mixed with sample. The mixture was allowed to stand for approximately 5 min and then filtered. At the end of the fifth minute, 1 ml of filtrate was added to 4 ml of 0.1 M phosphate buffer. Finally, 0.5 ml of Ellman’s reagent was added and the optical density was measured at 412 nm. A blank was prepared with 4 ml of the 0.1 M phosphate buffer, 1 ml of diluted precipitating solution, and 0.5 ml of the Ellman’s reagent.

Reverse transcription-polymerase chain reaction

The total RNA of the liver tissues was isolated using TRIzol reagent (Gibco). The RNA was dissolved with the RNA-free DNase (Roche, Switzerland) for a period of 15 min at a temperature of 37 °C. The RNeasy kit (Qiagen, Germany) was used to purify the RNA. The cDNA was synthesized by incubating 40 μg of the total RNA at 37 °C for a period of 1 h with the reverse transcriptase (GE Healthcare, UK) and also with random hexanucleotides, following the manufacturer’s instructions. The primers were designed using Snap gene software and ordered from Sigma-Aldrich, USA. The primers used to specifically amplify the genes of interest were,

Target gene	Forward 5′-3′	Reverse 5′-3′
COX-2	CTCAGCCATGCAGCAAATCC	GGGTGGGCTTCAGCAGTAAT
COX-1	TTGGAACTTCGAAGCCAT	CTGACAAGAAACAAGAACAAG
Cyclophilin	TGGAGAGCACCAAGACAGACA	TGCCGGAGTCGACAATGAT

Cyclophilin is the internal control gene. The genes were amplified for 50 cycles, 2 h and 20 min using the thermocycler. The amplified PCR products were run on 1.0% agarose gels and visualized with the aid of ethidium bromide (EtBr) staining [40].

Histopathology studies

The gastric mucosal tissues from the stomach of the experimental animals, groups A–F, were fixed in 10% buffered formalin (100 ml 37–40% formaldehyde, 4 g sodium phosphate monobasic, and 65 g of sodium phosphate dibasic in 900 ml of distilled water, pH 7.0) for 24 h [41]. The fixative was removed by washing with running water overnight. After dehydration, the tissues were cleaned in methyl-benzoate and embedded in paraffin wax. The section was cut into 3–5 μm thickness and later stained with hematoxylin and eosin. The sections were mounted and observed under light microscope.

Statistical analysis

The results obtained were expressed as the means ± standard error of mean (SEM). One-way analysis of variance (ANOVA) followed by Turkey’s multiple range tests and one-tailed test statistics were used to analyze the results. Conformation to the assumptions of the ANOVA test was ascertained. P < 0.05 were regarded as being significant, using the IBM-SPSS version 21.0 and GraphPad Prism version 7.0. The ImageJ software was used to quantify the bands from gene expression profiling (Fig. 1).

Fig. 1

2D-structures of flavanones (eriodictyol, hesperetin, and naringenin) and NSAIDS

Results

Modeled protein validation

The modeled structure of COX-1 was validated using the Ramachadran plot (Fig. 2). From Fig. 2, there is a total of 99.6% of an allowed region and no disallowed region.

Fig. 2

The Ramachandran plot of the model human COX-1

Molecular docking and virtual high throughput screening

The virtual high throughput screening revealed eriodictyol (docking scores of − 8.4 kcal/mol with COX-2 and − 7.8 kcal/mol with COX-1) (Fig. 1, Table 1), a flavanone as the lead compound (Table 1). In addition, the docking of other flavanones (Hesperetin and Naringenin) against COX-2 and COX-1 gave docking scores of − 8.5 kcal/mol and − 7.3 kcal/mol respectively with Hesperetin and docking scores of − 7.8 kcal/mol and − 6.7 kcal/mol respectively with Naringenin. Table 1 also shows the docking scores of standard selective inhibitors of both COX-2 and COX-1 (Fig. 3).

Table 1 Docking scores of the lead, other flavanones (Hesperetin and Naringenin), and the standard drugs (Celecoxib, ibuprofen, Indomethacin)

Fig. 3

a Interactions of celecoxib (orange) with key residues at the catalytic site of COX-2, the dotted red lines represent the hydrophobic interactions while the blue lines represent hydrogen bonds interactions. b Interactions of celecoxib (orange) with key residues at the catalytic site of COX-1; the dotted red lines represent hydrophobic interactions while the blue lines represent hydrogen bonds interactions. c Interactions of eriodicytol (orange) with key residues at the catalytic site of COX-2; the dotted red lines represent hydrophobic interactions while the blue lines represent hydrogen bonds interactions. d Interactions of eriodicytol (orange) with key residues at the catalytic site of COX-1; the dotted red lines represent hydrophobic interactions, the blue lines represent hydrogen bonds interactions and the dotted green lines represent Pi-stacking

Validation of docking results

The co-crystallized, a benzopyran, (2R)-6,8-dichloro-7-(2-methylpropoxy)-2-(trifluoromethyl)-2H-chromene-3-carboxylic acid was re-docked back into the catalytic pocket of COX-2 (PDB ID: 3NTG). An RMSD value of 0.11 Å was observed (Fig. 4).

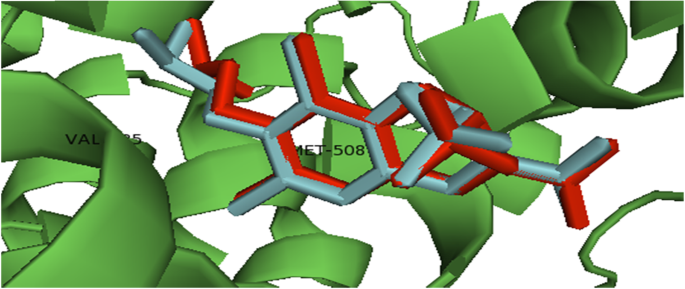

Fig. 4

The binding mode of the re-docked (cyan) and the co-crystallized, aspirin (red) within the active site of COX-2

Biochemical assays

Serum alanine aminotransferase

The level of alanine aminotransferase (ALT) was significantly increased in the group of animals given HCl-ethanol only when compared with the basal control (Fig. 5a). The level of ALT was significantly attenuated in the groups that were pre-treated with Sorghum bicolor flavanone extract (SBFE) (50 mg/kg and 100 mg/kg). The level of ALT was also significantly reduced in the group given only SBFE (100 mg/kg) when compared with the basal control.

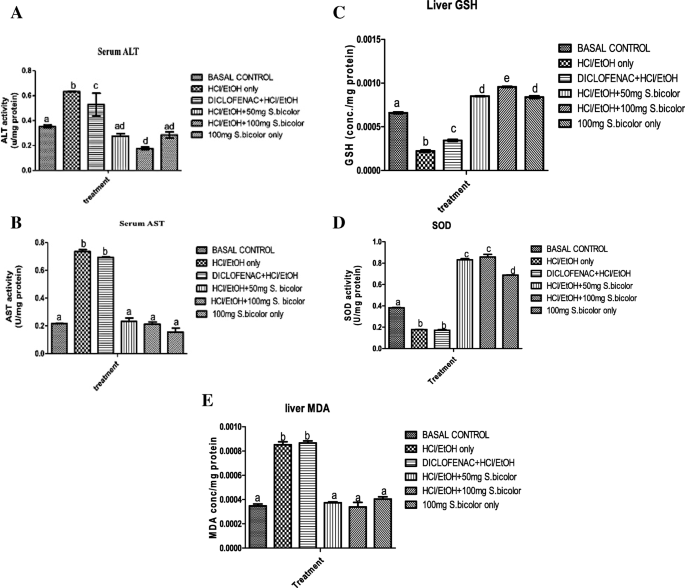

Fig. 5

a Effect of SBFE on HCl/ethanol-induced changes in serum alanine aminotransferase activity. Values are expressed as mean ± Standard error of mean (n = 6/group). P < 0.05 is considered to be statistically significant. Bars with different alphabets are statistically significant. b Effect of SBFE on HCl/ethanol-induced changes in serum aspartate transaminase activity. Values are expressed as mean ± Standard error of mean (n = 6/group). P < 0.05 is considered to be statistically significant. Bars with different alphabets are statistically significant. c Effect of SBFE on HCl/ethanol-induced changes in hepatic reduced glutathione levels. Values are expressed as mean ± Standard error of mean (n = 6/group). P < 0.05 is considered to be statistically significant. Bars with different alphabets are statistically significant. d Effect of SBFE on HCl/ethanol-induced changes in hepatic superoxide dismutase activity. Values are expressed as mean ± Standard error of mean (n = 6/group). P < 0.05 is considered to be statistically significant. Bars with different alphabets are statistically significant. e Effect of SBFE on HCl/ethanol-induced changes in hepatic malondialdehyde (MDA). Values are expressed as mean ± Standard error of mean (n = 6/group). P < 0.05 is considered to be statistically significant. Bars with different alphabets are statistically significant

Serum aspartate aminotransferase

The level of aspartate aminotransferase (AST) was significantly increased in the group induced with HCl/ethanol only. There was no significant decrease in the level of serum AST in the group pre-treated with the diclofenac and later induced with HCl/ethanol when compared with the group induced with only HCl/ethanol (no pre-treatment) (Fig. 5b). However, there was a significant decrease in the level of serum AST in the groups pre-treated with 50 mg/kg and 100 mg/kg SBFE. In addition, there was a significant decrease in the level of serum AST in the group given only SBFE (Fig. 7) when compared with the group induced with HCl/ethanol only. No significant differences were observed in the groups pre-treated with 50 mg/kg, 100 mg/kg, and the group given only the SBFE when compared with the control.

Liver glutathione

The level of glutathione (GSH) was significantly reduced in the group administered with HCl/ethanol only, when compared with the basal control (Fig. 5c). The level of GSH was significantly reduced in the group pre-treated with 50 mg/kg diclofenac when compared with the basal control group and the group given only the HCl/ethanol. There was a significant increase in the level of GSH in the groups pre-treated with 50 mg/kg and 100 mg/kg SBFE when compared with the basal control (Fig. 5c).

The superoxide dismutase

As indicated in Fig. 5d, SBFE (50 mg/kg, 100 mg/kg, and 100 mg/kg of SBFE only) significantly elevated the level of SOD when compared with the basal control group and the groups administered HCl/ethanol only and diclofenac + HCl/ethanol. The SOD level was significantly decreased in the group administered HCl/ethanol only, and in the group pretreated with diclofenac (diclofenac + HCl/ethanol). In Fig. 5d, the SOD level of the group of animals given only 100 mg/kg of Sorghum bicolor flavanone extract (SBFE) was significantly increased when compared with the control.

Lipid peroxidation

The level of malondialdehyde (MDA) was significantly increased in the groups administered HCl/ethanol only and in the group pre-treated with diclofenac (Fig. 5e). However, there were no significant differences in the groups pre-treated with SBFE (50 mg/kg and 100 mg/kg) and the groups treated with only 100 mg/kg SBFE when compared with the control.

Gene expression profiling of the cyclooxygenases

COX-2 gene

In Fig. 6a, the administration of HCl/ethanol only (negative control) and diclofenac + HCl/ethanol (positive control) significantly upregulate the expression of COX-2 gene when compared with the basal control. However, in the groups pre-treated with SBFE (HCl + ETOH + 50 mg/kg and HCl + ETOH + 100 mg/kg), there was significant downregulation of the expression of the COX-2 gene when compared to the basal control, negative control, and positive control (Fig. 6a).

Fig. 6

a Relative expression of COX-2 in the liver of rats in HCl/ethanol-induced inflammation. Values are expressed as mean ± Standard error of mean (n = 6/group). P < 0.05 is considered to be statistically significant. Bars with different alphabets are statistically significant. b Relative expression of COX-1 in the liver of rats in HCl/ethanol-induced inflammation. Values are expressed as mean ± Standard error of mean (n = 6/group). P < 0.05 is considered to be statistically significant. Bars with different alphabets are statistically significant

COX-1 gene

In Fig. 6b, COX-1 expression was upregulated in the negative control (HCl/ethanol only). There was no obvious downregulation in the expression of COX-1 in the positive control group and in the groups pre-treated with SBFE and later induced with HCl/ethanol (50 mg/kg and 100 mg/kg of SBFE) when compared with the negative control.

Histopathology analyses of the gastric mucosal tissues

Figure 7a reveals the microscopic view of the gastric mucosa tissue of the basal control. Figure 7b shows the microscopic view of the gastric mucosa tissue of the negative control (HCl/ethanol). Figure 7c shows the microscopic view of the gastric mucosa tissue of the positive control (diclofenac + HCl/ethanol). Figure 7d shows the microscopic view of the gastric mucosa tissue of the group pre-treated with 50 mg/kg Sorghum bicolor flavanone (SBFE). Figure 7e reveals the microscopic view of the gastric mucosa tissue of the group pre-treated with 100 mg/kg Sorghum bicolor flavanone extract (SBFE) while Fig. 7f reveals the microscopic view of the gastric mucosa tissue of the group treated with 100 mg/kg Sorghum bicolor flavanone extract (SBFE) only.

Fig. 7

a The basal control group, magnification of × 100. b Negative control, magnification of × 400. c The positive control, magnification of × 400. d Effects of the pre-treatment of 50 mg/kg Sorghum bicolor flavanone (SBFE) on the gastric tissue of HCl/ethanol-induced inflammation in rats, magnification × 400. e Effects of the pre-treatment of 100 mg/kg Sorghum bicolor flavanone (SBFE) on the gastric tissue of HCl/ethanol-induced inflammation in rats, magnification × 400. f Effects of 100 mg/kg Sorghum bicolor flavanone extract (SBFE) only on the gastric tissue of the experimental animals, magnification × 100

Discussion

Modeled protein validation

The modeled structure of COX-1 possess 99.6% allowed region and no disallowed region as validated with the Ramachadran plot (Fig. 2), which shows that our model is good and a true representation of human COX-1.

Molecular docking and virtual high throughput screening

The virtual high throughput screening revealed eriodictyol (Fig. 1), a flavanone, as the lead compound (Table 1). In addition, molecular docking of other flavanones (hesperetin and naringenin) shows that they possess selective inhibitory potentials against COX-2 (Table 1).

This is in accordance with various reports that have hitherto implicated flavanones as anti-inflammatory compounds [42,43,44]. The selective potential of COX-2 inhibitors depends on the replacement of histidine 513 and isoleucine 523 of COX-1 with the smaller arginine and valine respectively. This replacement removes the restriction at the mouth of the secondary side channel and allows access for the bulkier selective COX-2 inhibitors [45]. It appears that the selectivity of inhibitors to COX-2 is due to hydrogen bonds interactions (Table 2) [46]. Eriodictyol forms two hydrogen bonds interactions (Tyr-371 and Ser-516) within the active site of COX-2, while it forms only one hydrogen bond (Met-521) with COX-1 (Fig. 3c, d).

Table 2 Amino acids interactions of Celecoxib and the lead, Eriodictyol with COX-2 and COX-1

Validation of docking results

The re-docked pose overlaps almost completely with the experimental orientation (Fig. 4). This gives credence to the accuracy of the auto-dock vina algorithm employed for molecular docking and virtual screening in the present study.

Biochemical assays

Serum alanine aminotransferase

An elevated serum alanine aminotransferase (ALT) and serum aspartate aminotransferase (AST) has been proposed as an indicator of alcohol-induced liver damage [47]. In the present study, the level of ALT was significantly increased in the group of animals given HCl-ethanol only when compared with the basal control (Fig. 5a). This is an indication of liver damages [47]. The level of ALT was significantly attenuated in the groups that were pre-treated with Sorghum bicolor flavanone extract (SBFE) (50 mg/kg and 100 mg/kg). The level of ALT was also significantly reduced in the group given only SBFE (100 mg/kg) when compared with the basal control. It is evident from the present study that SBFE possesses hepatoprotective effects; this is in agreement with the report of Agbaje et al. [48].

Serum aspartate aminotransferase

The level of AST was significantly increased in the group induced with HCl/ethanol only, indicating liver damage. There was no significant decrease in the level of serum AST in the group pre-treated with the diclofenac and later induced with HCl/ethanol when compared with the group induced with only HCl/ethanol (no pre-treatment) (Fig. 5b). However, there was a significant decrease in the level of serum AST in the groups pre-treated with 50 mg/kg and 100 mg/kg SBFE. In addition, there was a significant decrease in the level of serum AST in the group given only SBFE (Fig. 7) when compared with the group induced with HCl/ethanol only. No significant differences were observed in the groups pre-treated with 50 mg/kg, 100 mg/kg, and the group given only the SBFE when compared with the control. This confirms the hepatoprotective properties of Sorghum bicolor [48].

Liver glutathione

Glutathione (GSH) is an important antioxidant and cell-signaling regulator. GSH protect the cells against oxidative injury by reducing H₂O₂ and scavenging reactive oxygen and nitrogen radicals. In the present study, the level of GSH was significantly reduced in the group administered with HCl/ethanol only, when compared with the basal control (Fig. 5c). The reduced level of GSH may be as a result of HCl/ethanol-induced liver injury [49]. The level of GSH was significantly reduced in the group pre-treated with 50 mg/kg diclofenac when compared with the basal control group and the group given only the HCl/ethanol. The reduced level of GSH in this group (diclofenac + HCl/ethanol) may be as a result of synergistic oxidative loads of diclofenac and HCl/ethanol on the liver. Diclofenac has been reported to be hepato-toxic [50]. However, there was a significant increase in the level of GSH in the groups pre-treated with 50 mg/kg and 100 mg/kg SBFE when compared with the basal control (Fig. 5c). It is observed here that the Sorghum bicolor extract maintains the liver integrity by augmenting the antioxidant defense system of the liver.

The superoxide dismutase

Superoxide dismutase is a detoxifying enzyme; it is a component of the first line of the defense system against reactive oxygen species (ROS). Superoxide dismutase (SOD) is the first detoxification enzyme and most powerful antioxidant in the cell. It is an important endogenous antioxidant enzyme that acts as a component of first-line defense system against ROS [51]. It catalyzes the dismutation of two molecules of superoxide anion to hydrogen peroxide and molecular oxygen and in the process rendering the potentially harmful superoxide anion less hazardous. AS indicated in Fig. 5d, SBFE (50 mg/kg, 100 mg/kg, and 100 mg/kg of SBFE only) significantly elevated the level of SOD when compared with the basal control group and the groups administered HCl/ethanol only and diclofenac + HCl/ethanol. The SOD level was significantly decreased in the group administered HCl/ethanol only, and in the group pretreated with diclofenac (diclofenac + HCl/ethanol), it appears that the toxic effects of ethanol and diclofenac disrupt the antioxidant defense system of the liver and it is probably through the generation of free radicals [52]. As revealed in Fig. 5d, the SOD level of the group of animals given only 100 mg/kg of sorghum bicolor flavanone extract (SBFE) was significantly increased when compared with the control. The SBFE, due to its reported antioxidant properties [53], may act by augmenting the antioxidant SOD defense system of the liver.

Lipid peroxidation

The development of chronic liver damage has been shown to be associated with the onset of lipid peroxidation [54]. Malondialdehyde (MDA) has been reported to be the foremost product to evaluate lipid peroxidation [55]. The level of MDA was significantly increased in the groups administered HCl/ethanol only and in the group pre-treated with diclofenac (Fig. 5e). There were no significant differences in the groups pre-treated with SBFE (50 mg/kg and 100 mg/kg) and the groups treated with only 100 mg/kg SBFE when compared with the control. HCl/ethanol and diclofenac-induced lipid peroxidation; however, the SBFE protect the liver from lipid-peroxidation.

Gene expression profiling of the cyclooxygenases

COX-2 gene

The COX-2 gene encodes the inducible isozyme, cyclooxygenase-2. It is induced by specific inflammatory stimuli, suggesting that it is responsible for the prostanoid biosynthesis involved in inflammation and mitogenesis. In Fig. 6a, the administration of HCl/ethanol only (negative control) and diclofenac + HCl/ethanol (positive control) significantly upregulate the expression of COX-2 gene when compared with the basal control. However, in the groups pre-treated with SBFE (HCl + ETOH + 50 mg/kg and HCl + ETOH + 100 mg/kg), there were significant downregulation of the expression of the COX-2 gene when compared to the basal control, negative control, and positive control (Fig. 6a). It is obvious from the result herein (Fig. 6a) that SBFE downregulates the expression of the pro-inflammatory COX-2 gene. The anti-inflammatory potential demonstrated by SBFE (Fig. 6a) is likely due to its inhibition of COX-2.

COX-1 gene

This converts arachidonic acid to prostaglandin H2 (PGH2). It is involved in the constitutive production of prostanoids in particular in the stomach and platelets. It plays an important role in cytoprotection. It promotes platelet activation and aggregation, vasoconstriction, and proliferation of vascular smooth muscle cells through the generation of thromboxane A2 (TXA2). In Fig. 6b, COX-1 expression was upregulated in the negative control (HCl/ethanol only). However, there was no obvious downregulation in the expression of COX-1 in the positive control group and in the groups pre-treated with SBFE and later induced with HCl/ethanol (50 mg/kg and 100 mg/kg of SBFE) when compared with the negative control. The downregulation of the expression of COX-2 by SBFE (Fig. 6a) and the inability of the same SBFE to downregulate the expression of COX-1 (Fig. 6b) is likely due to the selective inhibition of COX-2 by SBFE.

Histopathology analyses of the gastric mucosal tissues

The gastric mucosal tissues from the stomach of the experimental animals from groups A–F were fixed in 10% buffered formalin and stained with hematoxylin and eosin. Figure 7a reveals the microscopic view of the gastric mucosa tissue of the basal control. In this group, there are locally extensive foci of mild erosion (blue arrow) of the surface covering epithelial cells of the gastric mucosa. There are a few foci of mild hyperplasia of mucus neck cells (red arrow). Other tunics show no visible lesion.

Figure 7b shows the microscopic view of the gastric mucosa tissue of the negative control (HCl/ethanol). In this group, all tunics appear fairly normal. There are a few amounts of inflammatory cells at the base of the mucosa (blue arrow).

Figure 7c shows the microscopic view of the gastric mucosa tissue of the positive control (diclofenac + HCl/ethanol). In this group, all tunics appear fairly normal. However, there are a few foci of mild cloudy degeneration of a few parietal cells (arrow).

Figure 7d shows the microscopic view of the gastric mucosa tissue of the group pre-treated with 50 mg/kg Sorghum bicolor flavanone (SBFE). There is a widespread loss (blue arrow) of mucous cells of the mucous glands of the tunica mucosa. Parietal cells (red arrow) show varying degrees of cloudy degeneration.

Figure 7e reveals the microscopic view of the gastric mucosa tissue of the group pre-treated with 100 mg/kg Sorghum bicolor flavanone extract (SBFE). All tunics appear normal. No visible lesion.

Figure 7f also reveals the microscopic view of the gastric mucosa tissue of the group treated with 100 mg/kg Sorghum bicolor flavanone extract (SBFE) only. All the tunics appear normal and there was no visible lesion.

The histopathological analyses demonstrate that SBFE is effective in the prevention of HCl/ethanol-induced gastric injury in Wistar rats (Fig. 7a–f). COX-1 inhibitors are associated with a number of side effects including gastrointestinal erosions and renal and hepatic insufficiency; SBFE demonstrates its anti-inflammatory potential without any of such effects (Fig. 7a–f).

Conclusion

The side effects of current NSAIDs are as a result of selective inhibition of COX-1. To the best of our knowledge, nothing has been reported so far on the selective inhibition of COX-2 by flavanones. The present study established that flavanones are selective inhibitors of COX-2. This study shows that novel and potent hits could be generated via the virtual high throughput screening techniques applied herein.
