SHOX2 gene methylation in Egyptians having lung cancer
Egyptian Journal of Medical Human Genetics volume 21, Article number: 27 (2020)
Lung cancer tumorigenesis is mainly due to accumulation of genetic and epigenetic events in the respiratory epithelium. Epigenetic alteration is more frequent than somatic mutation in lung cancer. CpG island methylation of homeobox-associated genes is commonly seen in most early stage tumors. This study aimed at examining the potential usefulness of DNA methylation biomarker SHOX2, in broncho-alveolar lavage, in the diagnosis of lung cancer. Broncho-alveolar lavage was obtained from 80 patients; 60 cases with lung masses (proved malignant by histopathology) and 20 age and gender matched patients with benign lung lesions (benign controls). SHOX2 methylation status was evaluated using methylation analysis by restriction endonuclease digestion and real-time PCR.
SHOX2 methylation level ranged 3.90–77.16% in cases, and 3.52–7.86% in controls, (p ≤ 0.001). SHOX2 methylation levels in comparison to tissue biopsy pathology (the gold standard test) had 76.92% sensitivity, 70% specificity, 87% positive predictive value, and 53.8% negative predictive value in diagnosing lung cancer. Different methylation levels were noted in different lung pathologies, (p = 0.003), with the highest methylation levels in squamous cell carcinoma followed by adenocarcinoma and anaplastic carcinoma then lastly carcinoma in situ.
SHOX2 methylation levels could differentiate different varieties of lung cancer from benign lung lesions.
For several decades, lung cancer has been the world’s most common malignancy particularly among males [1, 2]. Many risk factors contribute to the pathogenesis of lung cancer, e.g., smoking as well as exposure to radon, asbestos, diesel, and ionizing radiation .
Lung cancer is classified according to its histo-pathology into two broad classes: non-small cell lung carcinoma (NSCLC), the most common type, and small cell lung carcinoma (SCLC), the second most common type. Along with these 2 main types of lung cancer, other rare types may occur including: carcinoid, adenoid cystic carcinomas, hamartomas, lymphomas, and sarcomas [4, 5].
Chest X-ray and computerized tomography (CT) are usually the first clue for diagnosing lung malignancy. They also play an important role in lung cancer staging. Bronchoscopy together with cytology and histological diagnosis provide optimal diagnosis [6, 7].
Tumor markers have a great importance in screening for early malignancy, helping in diagnosing different types of cancer, determining prognosis, following up patients after surgery, and monitoring therapeutic response. Carcinoembryonic antigen (CEA), squamous cell carcinoma antigen (SCCA), neuron-specific enolase (NSE), cytokeratin 19 fragment (CYFRA), and pro-gastrin-releasing peptide (proGRP) can all be used with varying accuracies .
Lung cancer tumorigenesis is mainly due to accumulation of genetic and epigenetic events in the respiratory epithelium. Epigenetic alteration is more frequent than somatic mutation in lung cancer [9, 10]. Since promoter hypermethylation can start early in lung carcinogenesis, it may thus have an important role in its early detection .
Detection of some of these early changes could be achieved by minimally invasive sample collection techniques, where aberrant DNA methylation can be detected as is the case with: sputum, broncho-alveolar lavage (BAL), and saliva of patients with lung cancer .
Short Stature Homeobox 2 (SHOX2) is a member of the homeobox family of genes and is known as SHOX homologous gene on chromosome three (SHOT), OG12, and OG12X [13, 14]. SHOX2 gene encodes an intranuclear transcription factor. SHOX2 CpG hypermethylation influences gene expression, which could affect the expression of multiple genes regulated by SHOX2, therefore promoting cell carcinogenesis. Genomic gain on chromosome 3q, where SHOX2 is located, has been recognized as one of the most prevalent and significant alterations in lung cancer .
The objective of this study is to determine the potential usefulness of SHOX2 DNA methylation in BAL as a biomarker for diagnosing lung cancer, which could be used for gene-targeted therapy. We also aimed at comparing these levels with other diagnostic modalities, like histopathology to detect their diagnostic accuracy.
The study design was a prospective case-control study conducted on 80 BAL samples obtained from 80 adult patients admitted to the Respiratory Department, sixty of whom had a suspicious lung mass on chest CT, which was later confirmed to be malignant by BAL cytology and/or histopathology of lung biopsy obtained by different techniques, e.g., CT-guided biopsy, ultrasound-guided biopsy, trans-bronchial biopsy, or open biopsy. Patients had neither co-exiting malignancies, lung metastases, history of chemotherapy nor previous lung malignancy. Twenty patients with benign lung lesions (e.g., foreign body aspiration, tracheal web, etc.), matched for age and gender, served as a control group, all had underwent bronchoscopy and BAL but did not show any evidence of lung cancer by CT or cytology/histopathology. Detailed clinical history including smoking habits, drug use was documented and full clinical examination, routine laboratory, and radiological investigations (chest X-ray or CT) were also performed. SHOX2 DNA methylation levels were detected using methylation analysis by restriction endonuclease digestion and real-time PCR.
The study was approved by Institutional Research Ethics Committee (#616.07) and a written informed consent was obtained from all participants before enrolment in the study. Patients were all coded and detailed information was stored confidentially. This work has been carried out in accordance with the Code of Ethics of the World Medical Association (Declaration of Helsinki and its later amendments) for experiments involving humans.
All enrolled patients underwent flexible bronchoscopic examination to visualize the airways, assess the presence of endo-bronchial lesion, surgical accessibility for resection, obtain BAL for cytological analysis, and obtain tissue biopsy for histopathological examination. Broncho-alveolar lavage (BAL) samples were collected during bronchoscopy by aspiration from the region of the suspicious lesion after injecting 10–20 ml of isotonic saline solution. Cytology from BAL was done to confirm or exclude malignancy.
DNA extraction was performed from the BAL using QIAamp DNA blood mini kit 50 (QIAGEN, Germany, cat. # 51104) and measurement of DNA quantity and purity was determined using Nanodrop 2000 spectrophotometer.
Digestion by Methylation Sensitive Restriction Enzymes
The DNA samples were subjected to restriction digestion by EpiTect Methyl II DNA Restriction Kit (Qiagen cat. # 335452), which prepares genomic DNA samples for DNA methylation analysis using EpiTect Methyl II PCR Assay. The kit contains: restriction digestion buffer, enzyme A (methylation-sensitive) and enzyme B (methylation-dependent). Using the enzymes and buffer provided in the kit, 4 digests were performed in order to detect different methylated DNA fractions. The product of a mock digest (Mo) contains all of the input genomic DNA. The product of the methylation-sensitive (Ms) restriction enzyme mixture (enzyme A) digest contains methylated DNA sequences, while the product of the methylation-dependent (Md) restriction enzyme mixture (enzyme B) digest contains unmethylated DNA sequences. The product of a double digest (Msd) measures the background and the success of both enzymatic digestions.
Equal amounts of a genomic DNA (125 ng) were added to 4 separate tubes into which buffer (13 μl/tube) and the appropriate restriction enzyme combinations (0.5 μl/tube) were added. The mock digest (Mo) had no enzymes added, enzyme A was added to the methylation-sensitive restriction digest (Ms), enzyme B was added to the methylation-dependent restriction digest (Md), and both enzyme mixtures were added to the double digest (Msd). All digests were incubated at 37 °C for 6 h in a thermal cycler (Thermo Scientific Arkitik Thermocycler) and the enzymes were heat inactivated at 65 °C, for 20 min.
Quantification of SHOX2 gene methylation percentage by real-time PCR
After DNA samples were digested by restriction enzymes, SHOX2 gene methylation status was assessed using EpiTect Methyl II PCR Assay. The EpiTect Methyl II PCR Assay (Cat #/ID: 335452) was used to analyze the amount of DNA in each digest of each sample to determine the methylation status of CpG islands in SHOX2 gene. The kit included the following: (1) RT2 SYBR Green ROX qPCR Mastermix (Qiagen catalogue number 330520) and (2) EpiTect Methyk II qPCR primer Assay (Human SHOX2) (Qiagen catalogue number 335002).
The method employed by the EpiTect Methyl II PCR kit is based on the detection of the remaining input DNA after cleavage with a methylation-sensitive and/or a methylation-dependent restriction enzyme. These enzymes digest unmethylated and methylated DNA, respectively. Following digestion, the remaining DNA in each individual enzyme reaction was quantified by real-time PCR using primers that flank a promoter (gene) region of interest. The relative fractions of methylated and unmethylated DNA were subsequently determined by comparing the amount in each digest with that of a mock (no enzymes added) digest using a ΔCT method.
Briefly, input genomic DNA is aliquoted into four equal portions and subjected to mock (no enzyme), methylation-sensitive (MSRE), methylation-dependent (MDRE), and double (MSRE and MDRE) restriction endonuclease digestion (5 μl of each enzyme). After digestion, the enzyme digests (5 μl/tube) were mixed directly with qPCR master mix (12.5 μl/tube) and dispensed into a PCR tubes containing pre-aliquoted primer mixes (1 μl/tube). Real-time PCR (Stratagene MX 3000P) was carried out using specified cycling conditions, (Supplementary material).
The product of the mock (no enzyme) digestion represents the total amount of input DNA for real-time PCR detection. In the methylation-sensitive digestion (Ms) reaction, the MSRE will digest unmethylated and partially methylated DNA. The remaining hypermethylated DNA (DNA in which all CpG sites are methylated) was detected by real-time PCR. In the methylation-dependent digestion (Md) reaction, the MDRE preferentially digested methylated DNA. The remaining unmethylated DNA was detected by real-time PCR. In the double digestion (Msd) reaction, both enzymes were present, and all DNA molecules (both methylated and unmethylated) were digested. This reaction measures the background and the fraction of input DNA refractory to enzyme digestion.
EpiTect Methyl II PCR assays provide gene methylation status as percentage unmethylated (UM) and percentage methylated (M) fraction of input DNA. Unmethylated represents the fraction of input genomic DNA containing no methylated CpG sites in the amplified region of a gene. Methylated represents fraction of input genomic DNA containing two or more methylated CpG sites in the targeted region of a gene.
The raw ΔCT values were inserted into the data analysis spreadsheet- provided by Qiagen (www.sabiosciences.com/dna_methylation_data_analysis.php), which automatically calculated the relative amount of methylated and unmethylated DNA fractions.
Statistical analysis of the data
Data was fed into a computer and analyzed using IBM SPSS software package version 20.0. (Armonk, NY: IBM Corp). Qualitative data was described using absolute values and percent. The Kolmogorov-Smirnov test was used to test the normality of distribution. Quantitative data was described as range (minimum and maximum), mean, standard deviation and median. Significance of the obtained results was judged at the 5% level.
Receiver operating characteristic (ROC) curve was generated by plotting sensitivity (true positive) on Y-axis versus 1-specificity (false positive) on X-axis at different cut-off values. The area under the ROC curve (AUC) denotes the diagnostic performance of the test. Area more than 50% gives acceptable performance with respect to 100%, as perfect accuracy .
Patients and controls were matched for age and sex (p = 0.114, p = 0.19 respectively, Table 1), inclusion criterion. Smoking was significantly more prevalent among cases than controls (p = 0.023, Table 2). Table 3 presents the common clinical presentations of the population studied (a single subject may have more than one complaint), Table 4 presents their CT findings and Table 5 presents their bronchoscopic findings.
BAL cytology was negative for malignant cells in all controls and in 26.7% of cases who were later proved to be positive for malignant cells by histopathology of lung biopsy (Table 6).
Table 7 demonstrates the biopsy histopathology results among cases and controls who were negative for malignancy, with 20% of them showing inflammatory changes.
There was a statistically significant difference between methylated and unmethylated percentage of SHOX2 gene between the two groups, where the percentage of methylated SHOX2 was significantly higher (p < 0.001) among lung cancer cases (21.18 ± 18.12) than controls (5.62 ± 1.80), as shown in Table 8.

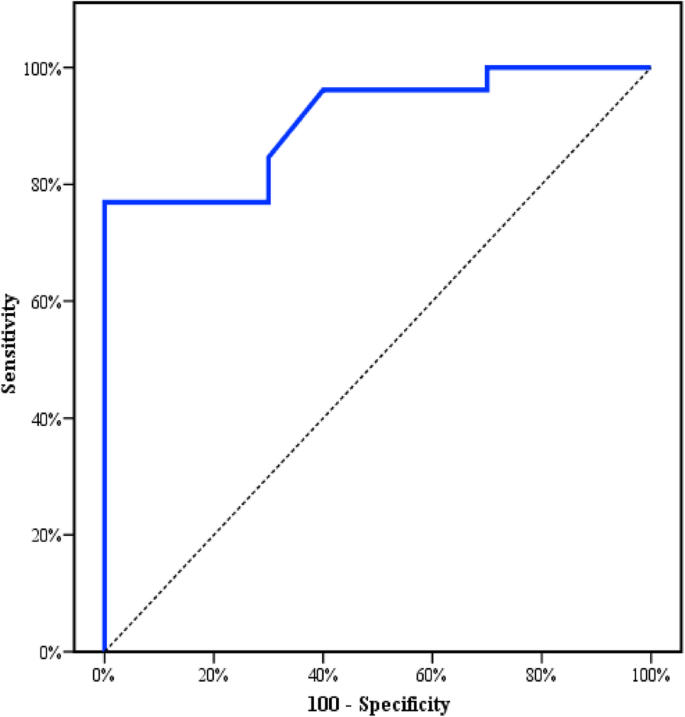

Background methylation was found among controls; therefore, a receiver operating characteristic (ROC) curve was constructed, as shown in Fig. 1, to calculate the cut-off methylation value that discriminates between cases and controls.
A methylation cut-off value of 7.16% was calculated, methylation values of more than 7.16% were considered positive. Methylation levels were ~77% sensitive, 70% specific with a positive predictive value of 87% and a negative predictive value of ~54% in detecting malignancy confirmed by histopathology biopsy (Table 9).
There was no statistical difference when comparing SHOX2 methylation levels between negative BAL cytology cases (16/60) and positive BAL cytology cases (44/60). The range of methylation of SHOX2 in cytology negative cases was 7.14–18.5%, (11.93 ± 5.33%) and a median of 10.11%, whereas SHOX2 methylation range in cytology positive cases was 3.9–77.16%, (23.96 ± 19.73%) with a median of 16.6. 3%.
Significantly different SHOX2 methylation levels were noted among different lung cancer histopathological types (p = 0.03), as seen in Table 10. Highest methylation levels were found among squamous cell carcinoma (SCC) cases (40.61 ± 1.18%) with a median of 41.47%. The second highest levels of SHOX2 methylation were found among adenocarcinoma cases (15.01 ± 6.42%) with a median of 15.67%. However, CIS cases had the least SHOX2 methylation level (7.15 ± 0.01%) with a median of 7.15%.
To the best of our knowledge, this is the first study conducted on Egyptians comparing SHOX2 gene methylation level between patients having lung cancer and those with benign lung lesions, aiming at investigating its relationship with lung cancer diagnosis. We studied SHOX2 methylation status in 60 patients who proved to have lung cancer on histopathology, in addition to 20 patients with benign lung lesions who served as benign controls. This was achieved using real-time PCR after digestion by restriction enzymes, which were either methylation sensitive (Ms) or methylation dependant (Md).
In our studied patients with lung cancer, smoking was a prevalent risk factor in most of them, as previously reported by Schmidt et al.  and Ilse et al. , showing that smoking is a common risk factor for lung cancer.
In our study, methylation levels of SHOX2 gene are expressed as percentages. SHOX2 methylation percentages were found to be significantly higher among cases than controls, p < 0.001. Different SHOX2 methylation levels are noted in different histopathological lung cancer types showing statistical significance, p = 0.03. Highest methylation levels are found in SCC cases followed by adenocarcinoma, anaplastic carcinoma (SCLC), and lastly CIS. The cut-off point for positive methylation was calculated to be more than 7.16 by ROC curve.
Dietrich et al. , who used Epi proLung BL Reflex kit, established a cut-off for the test to differentiate between positive and negative cases; the cut-off value was 9.5 %. Ilse et al.  used the same cut-off value, as they used the same kit. Also Schmidt et al.  implemented a methylation cut-off value to differentiate between positive and negative results, as background methylation was present in their control samples. Their methodology depended on bisulphite conversion followed by real-time PCR.
Schmidt et al.  found that higher methylation levels were noted in both SCLC and SCC than in patients with adenocarcinoma and this indicates a lower sensitivity of SHOX2 methylation in adenocarcinoma diagnosis. Another reason for the differences in methylation levels is the location of the tumor, as SCC masses are commonly centrally located, which makes BAL of better quality as it is accessible by bronchoscopy, opposite to peripherally located tumors such as adenocarcinoma.
Ilse et al.  showed that SCLC was best diagnosed by SHOX2 methylation percentage, with highest sensitivity 82%, followed by SCC at 81%, adenocarcinoma at 65%, adenocarcinoma NOS at 50%, but there was no significant difference in their study.
In our study, SHOX2 methylation levels showed a sensitivity of 76.92% and a specificity of 70% in detecting lung cancer cases. In the study conducted by Schmidt et al. , SHOX2 methylation levels showed a sensitivity of 68% and a specificity of 95%, while in that conducted by Dietrich et al. , SHOX2 methylation levels showed a sensitivity of 78% and a specificity of 96%, and lastly in the study of Ilse et al. , they showed a sensitivity of 64% and a specificity of 98%.
The difference between our results and those obtained by others may be attributed to the different methodologies used, difference in the number of studied cases, and ethnic differences between the studied populations.
The main limitations of our study are the relatively small sample size and inability to detect other epigenetic changes due to our limited budget. However, among the strong points in this research are the strict exclusion and inclusion criteria adopted for the selection of cases to avoid any confounding factors that could affect the results of our study causing bias.
In conclusion, the most common histological type of lung cancer among Egyptians enrolled in our study was adenocarcinoma followed by SCC then SCLC and lastly adenocarcinoma in situ. SHOX2 methylation levels could differentiate between lung cancer and benign lung lesions with a significant difference, p < 0.001. SHOX2 methylation levels differed significantly according to the histological types of tumors, highest in SCC, followed by adenocarcinoma then anaplastic carcinoma and lastly adenocarcinoma in situ. SHOX2 methylation level could not only distinguish between malignant and benign lung lesions but also discriminate between different histological types of lung cancer.
Interestingly, samples that were classified as “cytologically negative” or “inconclusive” due to the absence of malignant cells could be identified as cancer-positive based on their SHOX2 DNA methylation level.
Availability of data and materials
All data generated or analyzed during this study are included in this published article [and its supplementary information file].
Cyclin-dependent kinase inhibitor 2A/p16
Carcinoma in situ
Cytosine guanine islands
Cytokeratin 19 fragment
Methylation-dependent restriction enzyme
Methyl guanine DNA methyl transferase
Methylation-sensitive restriction enzyme
Not otherwise specified
Non-small cell lung carcinoma
Protein tyrosine phosphatase receptor type N2
Quantitative polymerase chain reaction
Receiver operating characteristic
Reactive oxygen species
Squamous cell carcinoma
Squamous cell carcinoma antigen
Small cell lung carcinoma
- SHOT :
SHOX homologous gene on chromosome three
- SHOX2 :
Short stature homeobox 2
Statistical package for social sciences
Siegel RL, Miller KD, Jemal A (2020) Cancer statistics, 2020. CA Cancer J Clin 70(1):7–30. https://doi.org/10.3322/caac.21590
Arrieta O, Lazcano E (2019) Lung cancer: Epidemiology, diagnosis and treatment. Salud Publica Mex 61(3):217–218. https://doi.org/10.21149/10660
Zhong L, Goldberg MS, Parent ME, Hanley JA (2000) Exposure to environmental tobacco smoke and the risk of lung cancer: a meta-analysis. Lung Cancer 27:3–18. https://doi.org/10.1016/s0169-5002(99)00093-8
Birring SS, Peake MD (2005) Symptoms and the early diagnosis of lung cancer. Thorax. 60:268–269. https://doi.org/10.1136/thx.2004.032698
Beadsmoore CJ, Screaton NJ (2003) Classification, staging and prognosis of lung cancer. Eur J Radiol 45:8–17. https://doi.org/10.1016/s0720-048x(02)00287-5
Latimer KM, Mott TF (2015) Lung cancer: diagnosis, treatment principles, and screening. Am Fam Physician 91:250–256 PMID:25955626
Böcking A, Klose KC, Kyll HJ, Hauptmann S (1995) Cytologic versus histologic evaluation of needle biopsy of the lung, hilum and mediastinum, sensitivity, specificity and typing accuracy. Acta Cytol 39:463–471 PMID:7762333
Niho S, Shinkai T (2001) Tumor markers in lung cancer. Gan To Kagaku Ryoho 28:2089–2093 PMID:11791391
Dumitrescu RG (2012) Epigenetic markers of early tumor development. Methods Mol Biol 863:3–14. https://doi.org/10.1007/978-1-61779-612-8_1
O'Hagan HM, Wang W, Sen S, Destefano Shields C, Lee SS, Zhang YW et al (2011) Oxidative damage targets complexes containing DNA methyltransferases, SIRT1, and polycomb members to promoter CpG Islands. Cancer Cell 20:606–619. https://doi.org/10.1016/j.ccr.2011.09.012
Selamat SA, Galler JS, Joshi AD, Fyfe MN, Campan M, Siegmund KD et al (2011) DNA methylation changes in atypical adenomatous hyperplasia, adenocarcinoma in situ, and lung adenocarcinoma. PLoS One 6:e21443. https://doi.org/10.1371/journal.pone.0021443
Kim DH, Nelson HH, Wiencke JK, Zheng S, Christiani DC, Wain JC et al (2001) p16 (INK4a) and histology-specific methylation of CpG islands by exposure to tobacco smoke in non-small cell lung cancer. Cancer Res 61:3419–3424 PMID:11309302
Massion PP, Taflan PM, Jamshedur Rahman SM, Yildiz P, Shyr Y, Edgerton ME et al (2003) Significance of p63 amplification and overexpression in lung cancer development and prognosis. Cancer Res 63:7113–7121 PMID:14612504
De Baere E, Speleman F, Van Roy N, De Paepe A, Messiaen L (1998) Assignment of SHOX2 (alias OG12X and SHOT) to human chromosome bands 3q25-- > q26.1 by in situ hybridization. Cytogenet Cell Genet 82:228–229. https://doi.org/10.1159/000015108
Schneider KU, Dietrich D, Fleischhacker M, Leschber G, Merk J, Schäper F et al (2011) Correlation of SHOX2 gene amplification and DNA methylation in lung cancer tumors. BMC Cancer 11:102. https://doi.org/10.1186/1471-2407-11-102
Binu VS, Mayya SS, Dhar M (2014) Some basic aspects of statistical methods and sample size determination in health science research. Ayu 35:119–123. https://doi.org/10.4103/0974-8520.146202
Schmidt B, Liebenberg V, Dietrich D, Schlegel T, Kneip C, Seegebarth A et al (2010) SHOX2 DNA methylation is a biomarker for the diagnosis of lung cancer based on bronchial aspirates. BMC Cancer 10:600. https://doi.org/10.1186/1471-2407-10-600
Ilse P, Biesterfeld S, Pomjanski N, Wrobel C, Schramm M (2014) Analysis of SHOX2 methylation as an aid to cytology in lung cancer diagnosis. Cancer Genomics Proteomics 11:251–258 PMID:25331797
Dietrich D, Kneip C, Raji O, Liloglou T, Seegebarth A, Schlegel T et al (2012) Performance evaluation of the DNA methylation biomarker SHOX2 for the aid in diagnosis of lung cancer based on the analysis of bronchial aspirates. Int J Oncol 40:825–832. https://doi.org/10.3892/ijo.2011.1264
