Mutational analysis of phospholipase C epsilon 1 gene in Egyptian children with steroid-resistant nephrotic syndrome

Abstract

Background

Steroid-resistant nephrotic syndrome (SRNS) is characterized by unresponsiveness of nephrotic range proteinuria to standard steroid therapy, and is the main cause of childhood renal failure. The identification of more than 53 monogenic causes of SRNS has led researchers to focus on the genetic mutations related to the molecular mechanisms of the disease. Mutations in the PLCE1 gene, which encodes phospholipase C epsilon 1 (PLCε1), have been described in patients with early-onset SRNS characterized by progressive renal failure. In this study we screened for PLCE1 mutations in Egyptian children with SRNS. This is a descriptive case series study aiming to screen for PLCE1 gene mutations by direct sequencing of five exons—9, 12, 15, 19, 27—in 20 Egyptian children with SRNS who entered the Nephrology Unit, Faculty of Medicine, Ain-Shams University from November 2015 to December 2017. The variants detected were submitted to in silico analysis.

Results

We screened for mutations in five selected exons of PLCE1 gene. We identified seven variants in the five selected exons with homozygous and heterozygous inheritance pattern, two are intronic variants, two are silent variants, and three are missense variants. We identified four novel variants two are silent with no clinical significance and two are missense with uncertain clinical significance and pathogenic in-silico predictions; one p.Arg1230His in exon 12, the other is p.Glu1393Lys in exon 15.

Conclusions

We identified four novel mutations, findings which added to the registered SNP spectrum of the PLCE1 gene. These results widen the spectrum of PLCE1 gene mutations and support the importance of genetic testing in different populations of SRNS patients, therefore, to assess the vulnerability of Egyptian children to SRNS candidate genes, further studies needed on a larger number of cases which undoubtedly provide new insights into the pathogenic mechanisms of SRNS and might help in control of the patient. Additionally, the use of computational scoring and modeling tools may assist in the evaluation of the way in which the SNPs affect protein functionality.

Background

Nephrotic syndrome (NS) is the main feature of childhood glomerular disease, and is characterized by heavy proteinuria, hypoalbuminemia, and edema [1]. Most children with NS respond well to standard steroid therapy, and are clinically controlled. However, approximately 10%–20% of children are classified as having steroid-resistant NS (SRNS) and progress rapidly to end-stage renal disease (ESRD) [2, 3]. The predominant histopathological pattern of SRNS patients is focal segmental glomerulosclerosis (FSGS) which leads to ESRD in children [4]. In an Egyptian single-center study of 741 Egyptian children, SRNS was found in 43% (n = 354) of patients, and FSGS histology appeared in 19.2% of SRNS patients [5]. Inherited structural defects of the glomerular filtration barrier were detected in isolated, as well as familial, cases of SRNS [6]. The majority of genes known to cause SRNS are recessive, and SRNS resulting from recessive genes in early childhood involves the genes NPHS1, LAMB2, and PLCE1 [3].

Phospholipase C epsilon 1(PLCε1) (EC.14.3.3) is a member of the PLC enzyme family, and is involved in the hydrolysis of phosphoinositide molecules (phosphatidylinositol 4,5 -bisphosphate (PIP2) into two secondary messengers, inositol 1,4,5 -triphosphate (IP3) and diacylglycerol (DAG), thereby contributing to intracellular signaling. PLCε1, which interacts with several partners, is involved in multiple signaling pathways that can affect gene expression and therefore cell growth and differentiation [7]. Previous studies into PLCE1 mutations in populations with SRNS showed that PLCE1 mutations present as an early-onset nephrotic syndrome (NPHS3; 610725) which progresses rapidly to ESRD with diffuse mesangial sclerosis (DMS) histology (truncating or with splice site mutations) or presents in adulthood with FSGS histology with C-terminal truncating or missense mutations. The defect due to the truncation of PLCE1 leads to a defect in the phosphoinositide metabolic pathway. This defect is a causative agent for kidney disease [8, 9], and is the major cause of isolated DMS [10]. Till now, there is no PLCE1 screening mutations have been identified in the Egyptian children. In this study we aimed to identify causative mutations of the PLCE1 gene in exons 9, 12, 15, 19, and 27 in twenty Egyptian children with SRNS and analyze the pathogenicity of these mutations. This study paves the way to further studies to assess the PLCE1 gene mutational spectrum in large scale within Egyptian population.

Methods

Study subjects

This was a descriptive case series study conducted on 20 patients who entered the Nephrology Unit, Faculty of Medicine, Ain-Shams University from November 2015 to December 2017. NS is diagnosed when there is a urinary protein excretion > 40 mg/m2 of surface area/hour with urine protein: creatinine ratio (uPCR) > 200 mg/mmol with hypo-albuminemia and edema [11]. The patients were aged between 1 and 16 years old at the onset of the disease, and did not respond to eight weeks of oral treatment with Prednisolone (Predsol Forte® or Solupred®) at a dosage of 2 mg/kg/day [11]. Congenital and familial NS patients with pedigree data were included within the criteria of the study. The criteria for exclusion were steroid-responsive NS or steroid-dependent NS, patients with congenital renal anomalies, and patients with NS secondary to a condition such as infection or lupus. Each participant was informed about the study purpose, and either verbal or some written consent was obtained and signed by family members.

Clinical data and biochemical measurements

Venous blood samples (5 ml) were collected into ethylenediaminetetraacetic acid (EDTA) tubes as part of routine medical procedures involving hospitalization. Some of the blood was subjected to a complete blood count, ESR, liver and renal function tests, urine analysis, and albumin/creatinine ratio. Some renal biopsies were performed by hospital pathology department. The rest of the blood was used for molecular analysis. The molecular analysis was performed at Molecular Genetic and Enzymology department, Human Genetic and Genome Research Institute, National Research Centre, Giza, Egypt.

Genomic DNA extraction, PCR amplification, and DNA sequencing

Genomic DNA was extracted using DNA extraction and purification kits (Qiagen, Hilden, Germany; Cat.No.51304) according to the manufacturer’s protocol. Genomic DNA was amplified using Taq PCR master mix (Qiagen; Cat. No. 201443) using intronic primers flanking each of the coding exons of PLCE1 [9, 12, 15, 19, and 27], with a total volume of 100 µl. Primer sequences and PCR conditions are available on request, and primer sequences as specified in [8] are shown in Table 1. The purified PCR products sequenced using the chain termination method [12], in both directions, using the same primers as used in the PCR amplification process, using Big Dye Termination kits (Applied Biosystems, Foster City, CA, USA). The data were analyzed on an ABI Prism 3500 Genetic Analyzer (Applied Biosystems,) according to the manufacturer’s instructions. The DNA sequences were analyzed by visual inspection, using Finch Tv (Geospiza, Denver, CO, USA) to detect heterozygotic positions and exclude the background noise. The sequences were subjected to in silico analysis for SNP annotation.

Table 1 The Sequence of PCR primers

Statistical analysis

Statistical analysis was done using the statistical package for the social science (SPSS version 22.0) (IBM Corp, NY, USA). Data were expressed as (mean ± SD) for quantitative data. Data were analyzed using Student's t-test as regards normally distributed data. P value ≤ 0.05 was considered statistically significant.

Data set

We used BLAST [13] to align our query sequences obtained by Sanger sequencing in abi format aligned against the human reference genome version GRCh38/hg38 from GenBank [14], and identified the differences between the nucleotide sequences of our queries and the reference PLCE1 gene sequence (GenBank; NG_015799.1). The protein sequence of PLCε1 protein was retrieved in FASTA format from NCBI [15] by protein ID (NP_057425.3) or from Uniprot [16] by Uniprot ID (Q9P212). The human gene nomenclature used follows the standards of the HUGO Gene Nomenclature Committee (HGNC) [17]. Protein structures were downloaded from the PDB database [18]. The variants were named according to #HGVS version 4.1 [19] and using the canonical transcript which consist of 2302 amino acids and designated by ENSMBLE ID ENST00000371380 or the GenBank transcript ID NM_016341.4.

Computational analyses

To evaluate the effects of the SNPs, we used a range of computational tools. We predicted the effect of SNPs at the genetic level on gene expression or gene chromatin binding, and at the protein level, where residue substitution may affect protein stability, intra- and inter-molecular interaction patterns, and evaluated the evolutionary conservation of residues. Table 2 shows the tools and their methodologies used to predict the pathogenicity of the obtained SNPs, as well as their effects on protein structure and function.

Table 2 Different in silico tools used in prediction of missense variants pathogenecity in PCLE1 gene

Homology modeling

We evaluated the effects of amino acid substitutions on the 3D structure of the proteins, which in turn affects the function of the protein. Since a PDB structure for whole sequence of the PLCε1 protein product is not available, we used Modeller 9.23 software, which relies on the satisfaction of spatial restraints obtained from the 3D structures of proteins homologous to the query protein [37]. We selected a specific amino acid sequence of the PLCε1 protein, from positions 1198 to 2117, encompassing the two novel nSNPs identified in this study. Using the PSI-BLASTp database search tool, we searched each domain sequence against the PDB database to obtain well-matched PDB structures [43]. PDB files of highly matched protein domains were used as templates in a Multi template building model to predict the PDB structure of the PLCε1 protein domains that encompass the two novel variants, and to determine the effect of amino acid substitution on the 3D structure. The Modeller program uses Python. The missing loops of the structure obtained were refined using ModLoop [44]. Clashing residues and bad rotamers were fixed using the Swiss-PDB viewer [45] and Chimera. The PDB structure thus obtained was submitted to structural and functional analysis by evaluating the effect of the SNPs on its geometry (root mean square deviation (RMSD) variation) and its interaction pattern.

Results

The study was conducted on 20 patients with SRNS; 13 males and 7 females in a ratio of 1.85:1. The mean age at the time of the study was 6 years. Fourteen patients (70%) showed symptom relief with intensive immunosuppressive therapy such as cyclosporine A (CsA) (Sandimmune®) at a dose of 150 mg/m2/day added to oral methylprednisone in two divided doses (Predsol®)., while 6 children (30%) were on dialysis. There was no consanguinity between the children.

Clinical and biochemical diagnoses were performed on 20 patients with SRNS and the results matched the criteria for the diagnosis of SRNS patients. Table 3 shows some of the clinical and biochemical data of the patients.

Table 3 Clinical and biochemical data of the SRNS patients with PLCE1 mutations

BLAST alignment results

Table 4 and Fig. 1 show a summary of results from the mutation analysis of the PLCE1 gene. Two SNPs were identified in Exon 27. One was novel heterozygous non sense g. 94313289 T > A, T2013T in one case (5%) and one was an intronic SNP g.96072977G > A rs759855980 appeared in five cases (25%). Exon 9 contained a novel heterozygous non sense variant c. 3595 G > T hetero G1120G in one case(5%). Exon 12 had a novel heterozygous nSNP (c.3689G > A) with the codon change R1230H appeared in two cases (10%) one of them was subjected to dialysis. Exon 15 had a novel heterozygous nSNP (c.3253G > A) with the codon change E1393K in one case (5%). In Exon 19 two previously reported SNPs were detected: one heterozygous intronic SNP c.3871 + 40C > T with dbSNP id (rs2274225) appeared in seven cases (35%) and another nsSNP variant c.4724G > C with dbSNP id (rs2274224) with the codon change R1575P appeared in six cases (30%) in homozygous pattern and eight cases(40%) with heterozygous pattern.

Table 4 A summary of detected SNPs identified using BLAST alignment, and their nomenclature according to the HGVS criteria

Figure 2 (A1 and B1) shows the flexibility graphs of both residues, colored according to the vibrational entropy change upon mutation

Fig. 1
figure 1

The chromatograms of obtained variants from direct sequencing and visually inspected by Finch TV. each variant called according to HGVS criteria and ordered in ascending manner from exon 9 to exon 27, where A designate the exon 9 non sense SNP B designate the exon 12 missense SNP C designate the exon 15 missense SNP D designate the exon 19 heterozygous missense SNP E designate the exon 19 homozygous missense SNP. F designate the intronic SNP in exon 19. G designate the non sense SNP in exon 27. H designate the intronic SNP in exon 27; Each vertical rectangle mark the location of SNP and each codon change leading to amino acid change designated by upper line with the codon and its relative amino acid

Fig. 2
figure 2

Molecular Visualization and Analysis of Wild and Mutant positions: (A1, B1) resemble the DynaMut graphs flexibility results which reveal the SNP positions (A1) R1230H (B1)E1393K where BLUE increase flexibility and RED decrease flexibility (A2(1230), B2 (1393))resemble the inter-molecular H- bonding of wild residues (A3(1230), B3(1393)) resemble the inter-molecular H- bonding of Mutant residues (A4(1230), B4(1393)) resemble the inter-molecular Clashes of wild residues (A5(1230), B5(1393)) resemble the inter-molecular Clashes of Mutant residues

Protein–protein alignment using BLASTp indicated that the variant in exon 12 (R1230) is located in a conserved domain designated as Cdd: cd16203 (EF-hand motif found in phosphoinositide phospholipase superfamily) and the variant in exon 15 (R1393) is located in a conserved domain designated as Cdd: cd08596 (Catalytic domain of phosphoinositide-specific phospholipase C-like phosphodiesterases).

Prediction of deleteriousness of SNPs at the nucleotide level

Table 5 shows the results of the prediction of the deleteriousness of SNPs due to nucleotide substitution: according to Varsome, Trapscore, Mutation Taster and FATHMM- MKL results: nsSNP R1230H; g.270037G > A (exon 12) is regarded as a deleterious SNP and probably damaging to the whole protein due to its conservative score, and can affect the splicing site as well as the nsSNP E1393K; g.276866G > A (Exon 15) is predicted as a mutational hot spot site, located in a functional domain, therefore, may be deleterious can affect splicing of the protein accotding to Varsome, Mutation Taster, ans FATHMM- MKL. Additionally, the intronic variant (rs759855980) in (Exon 27) is predicted to damage the final protein transcript according to Trapscore only while other scores predicted it as benign.. On the other hand, the variants: nsSNP R1575P (Exon 19), sSNP g. 94313289 T > A (T2013T), sSNP G1120G: g.265282 T > G (Exon 9) and intronic variant (rs2274225); g.290963C > T(Exon19): predicted to be simple nucleotide substitution without any deleterious effect on transcription or splicing.

Table 5 Prediction of deleteriousness of SNP upon nucleotide substitution

Estimation of the effect of intronic SNP on gene regulation and DNA-chromatin binding

DNA genetic regions can be classified into functional and regulator regions. Gene regulation involves the regulation of gene expression and the chromatin binding affinity; genetic variation may alter this regulatory process. We used prediction algorithms to evaluate the effect of intronic SNPs on genetic regulation. The Consite server indicated that intronic SNPs can alter the DNA binding affinity toward different transcriptional factors, and may affect the transcription process, and thus protein expression (Table 6).

Table 6 Consite server results elucidate the effect of SNP on gene regulation

Prediction of nsSNP deleteriousness

Tables 7 and 8 show the predictions of the effects of nsSNPs on protein function produced by different scoring tools. Many prediction scores (10/14) evaluated R1230H SNP as a deleterious variant which may be disease causing. While a few prediction scores (6/14) evaluate E1393K SNP as disease causing, the majority of predictions evaluate it as a tolerated variant. The other nsSNP in exon 19 is previously recorded (rs 2,274,224) and predicted as tolerated [46, 47]. This nsSNP has been reported to be related to PLCE1 mutations implicated in esophageal squamous cell carcinoma in a Chinese population [48].

Table 7 Evaluation of the deleteriousness of nsSNPs by the predictSNP1.0 server based on many prediction tools
Table 8 Prediction of nsSNP deleteriousness by another different ranking scores

Evaluation of protein stability

Table 9 shows the prediction of the effects of amino acid substitutions upon protein stability by calculation of Gibbs free energy change according to sequence variation; Table 10 shows the predictions of amino acid substitution upon protein stability by calculation of Gibbs free energy change according to the 3D structure variation. The ΔΔG value is calculated from the difference of unfolding the Gibbs free energy value of the mutated and wild type proteins in Kcal/mol, with an ΔΔG > 0 meaning stabilizing and ΔΔG < 0 meaning destabilizing. The sequence-based predictors, I-Mutant and Mupro, predicted that residue substitution at R1230H and E1393K destabilizes the whole protein. The other structure-based stability predictors differed. DynaMut predicted that R1230H destabilizes and E1393K stabilizes the protein, based on an analysis of deformation energy (a measure of the amount of local flexibility in the protein) and atomic fluctuation (the amplitude of the absolute atomic motion), The ENCOM server estimates the effects of single point mutations on protein dynamics and thermo-stability resulting from vibrational entropy changes. Its analysis of mutant R1230H showed that the Vibrational Entropy Energy (ΔΔSVib) ENCoM was 0.222 kcal mol−1 K−1, indicating an increase in molecule flexibility and decrease of protein stability. Mutant E1393K had a ΔΔSVib ENCoM of − 0.043 kcal.mol−1.K−1, indicating a decrease in molecule flexibility and, hence an increase in protein stability. PremPs indicated that the stability of the protein increased with both mutations.

Table 9 Sequence-based stability predictions
Table 10 Structure-Based stability Predictions

Estimation of position conservation

The estimation of the position conservation of specific residues is important when estimating a residue’s evolutionary functionality, and can be predicted using WebLogo and Consurf.Figure 3 shows the Consurf results. The conservation score of R1230 was 9 and the symbol was f, meaning it is highly conserved and functional, while E1393 has a score of 5 and symbol e, meaning it is a moderately conserved and exposed residue. Figure 4 also shows the WebLogo results, which indicate that the R1230 position is highly conserved. The overall height of its stack indicates the sequence conservation at this position takes 2.4 bits, and the height of the R symbol within the stacks reflects the relative frequency of the corresponding amino acid at that position between different species. Position E1393 showed a moderate stack height and lower bits.

Fig. 3
figure 3

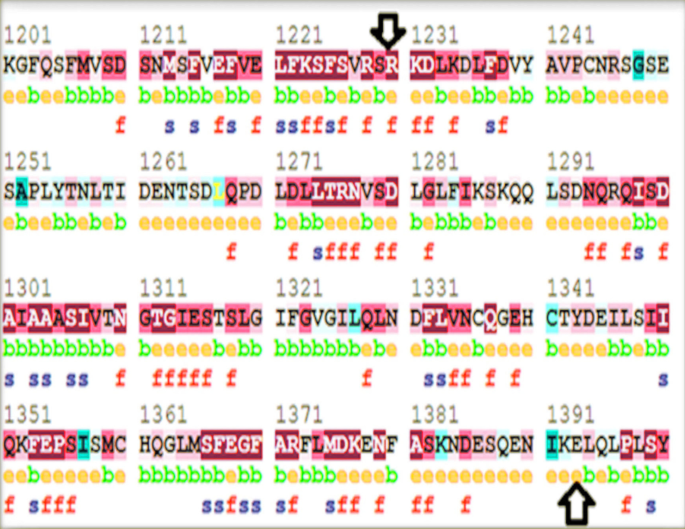

The conservation score obtained according to Consurf prediction score. The arrows indicating the position of two novel mutations at R1230 and at E1393. Symbol characters (e) indicate the amino acid position is exposed (f) indicate that the amino acid position is predicted functional residue (highly conserved and exposed). b indicate that the amino acid position is a buried residue (s) indicate that the amino acid position is predicted structural residue (highly conserved and buried)

Fig. 4
figure 4

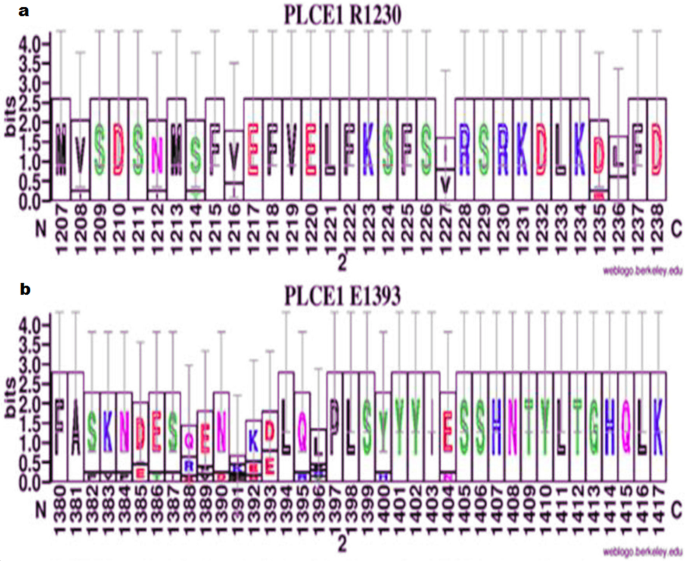

The WEBLOGO representation of amino acid conservation: input data as Clustal format according to multiple sequence alignment of PLCE1 between human and other organisms. 60 amino acids for PLCE1 protein(Q9P212) Homo sapiens (NP_057425.3), along with seven proteins from Gallus gallus(XP_015144344.2), Canis lupus familiaris (NP_001130037.1), Mus musculus (NP_062534.2), Rattus norvegicus (NP_446210.1), Pan troglodytes (XP_009457233.3) and Danio rerio (NP_001155125.1) and (even in PLC210 the most primitive othologe of PLCE1) Caenorhabditis elegans (AAC38963.1) a represent the logo representation of aligned positions containing R1230 (according to human sequence) While b represent the logo representation of 60 amino acids of the same organisms but in position containing the other mutant amino acid E 1393 (according to human sequence) show low conservation score than R1230

Homology modeling

Figure 5 shows the PDB structure created, which has three chains that resemble three conserved domains in the PLCε1 protein, as follows: the sequence from 1199 to 1392 resembles the EF-Hand domain, that from 1393 to 2005 resembles the catalytic domain of phosphoinositide-specific phospholipase C-like phosphodiesterases, and that from 2006 to 2117 resembles the RA1 RAS binding domain. The structure was visualized using Chimera. Figure 6 shows the Ramachandran plot of this PDB structure, and its quality and validity was verified using PROCHECK [49].

Fig. 5
figure 5

The modeled 3D structure presicted by modeller 9.23 and viewed by UCSF chimera. The 3D structure appeared as a trimer (3 chains: A,B,C) chain A (Blue colored), Chain B(Green colored) and chain C(Red coolorred) and labelled by the positions of the two amino acids comprising the obtained two novel SNP at R1230 (in Chain A)and E1393(in chain B)

Fig. 6
figure 6

Evaluation & Validation of predicted PDB model: where the Ramchandran Plot revealed that 90% of all modeled residues lie energetically in the most favored regions. According to PROCHECK server

Effect of SNP on protein 3D structure: prediction of the structural changes introduced by an amino acid substitution

We estimated the effect of the SNPs on the 3D structure of the protein, according to the structure deformation and variation in interaction patterns. Missense3D indicated that substitution R1230H leads to a change from an exposed to a buried state where ARG is exposed (RSA 36.2%) and HIS is buried (RSA 8.6%). (RSA < 9% for buried and the difference between RSA has to be at least 5%). The Missense3D predictor concluded that the R1230H substitution leads to protein structural damage without altering the secondary structure 'I' (5-turn helix). E1393K was not predicted to lead to any structural damage.

Molecular visualization

Molecular visualization and 3D structure analysis was performed using Chimera software [40]. The superposing feature (structure comparison) between the wild type modeled PLCε1 protein and the modeled mutated forms at positions 1230 and 1393 showed an overall RMSD equal to 0.00, indicating no deviation between the wild and mutated structures. The differences in interaction patterns between the wild type and mutated structures were analyzed using the Rotamer feature of Chimera. Figure 6 and Table 11 show that there was no change in H-bonding pattern upon R1230H mutation, while the E1393K mutation led to the loss of one H-bond between LYS1393 and ASN1390. Inter-molecular clash analysis showed an increase in clashes of H1230 and K1393 in comparison with the wild type residues R1230 and E1393, respectively. (Note: Chimera analysis criteria: H-bonding analysis, constraints relaxed by 0.4 angstroms and 20 degrees; and Clash analysis, allowed overlap: − 0.4, H-bond overlap reduction: 0).

Table 11 Inter-molecular H- bonding and Clash Analysis of Wild and mutant structure of modeled PLCε1 according to chimera

Estimation of protein–protein interactions

DynaMut and PremPs were used to compare non-covalent interactions between wild type and mutant residues, with adjacent residues showing exchange between this. The production of different interactions leads to destabilization of the protein upon R1230H mutation, according to DynaMut, and stabilization of the protein when both mutations occur, according to PremPs. Figure 7 shows the interaction pattern of the PLCε1 PDB structures, both wild type and mutated at R1230H and E1393K, according to PremPs predictions. Furthermore, interactions between modeled structure of PLCε1 and IQGAP1 PDB structure was computationally evaluated before and after mutations at the two positions. Table 12 shows the CoCoMaps interaction results according to the extent of structure hydrophobicity or hydrophilicity upon mutation. The interaction between PLCε1 and IQGAP1 was predicted to be interrupted by the mutation.

Fig. 7
figure 7

Intra-molecular Interactions analysis by using PremPs server: The tow interesting sites 1230 with wild (ARG) and mutant (HIS) intearctions with adjacent residues (VAL 1227, ARG 1228, ASP 1232, PHE 2006 and LYS 1234) and 1393 with wild (GLU) and mutant (LYS) interactions with adjacent residues (ASN 1390 and ILE 1391). Each type of interaction have its specific graphical color and appeared as line dots

Table 12 The results of interaction prediction of wild type and mutant forms of PLCE1 with IQGAP1

Molecular docking

To further evaluate the changes in interaction pattern induced by mutations, we used molecular docking to estimate the effect of amino acid substitution on the interactions of the protein with small molecules, even when the mutations were not in the active site. We used Auto Dock Vina to estimate the interactions between the modeled structures of the wild type and mutated structures of PLCε1 as an enzyme (receptor) and its substrate, phosphatidylinositol 4,5-diphosphate(PIP2), and examine whether the mutation of the residues changed the binding affinity and conformation energy. The results were viewed using Discovery Studio 2.5.5 (Accelrys Pipeline Pilot Co.). Figure 8 and Table 13 show the lowest calculated binding energy value of modeled PLCε1 to PIP2, where the binding energy of the wild type protein to PIP2 was − 7.5 kcal\mol. This agree with modeled mutant PLCε1 at E1393K which show the same calculated binding energy, that is in contrast to modeled mutant PLCε1 at R1230H which had a larger binding energy, of − 7.1 kcal\mol with changed binding residues indicate that affecting the docking pocket, and consequently the patterns of interaction.

Fig. 8
figure 8

Auto Dock Vina results analysis of wild and mutated structures: The ligand (PIP2) appeared in the center of the structure(as sticks) surrounded by the adjacent protein residues in the docking pocket appeared in green circles where A wild type docing result B mutant R1230H docking results C mutant E1393K docking result

Table 13 Summary of AutoDock Vina Results

The docking results were also evaluated using the Patch Dock server. The docking score and atomic contact energy (ACE) of the native and mutant complexes of the predicted structure of PLCε1 and PIP2 were calculated. Table 14 shows that the docking score of wild PLCε1 was lower than that of mutant R1230H, and the same as that of mutant E1393K. We confirmed that mutant R1230H may lead to deviations in the interaction affinities of the protein.

Table 14 Docking results of modeled PDB of PLCε1 with PIP2 using Patchdock

Discussion

SRNS is challenging for clinicians, because of the difficulty of its prognosis and management. Thirty to forty percent of patients develop ESRD, requiring dialysis and transplantation [50]. The early identification of disease onset can help in resolving this problem. The screening for mutations in SRNS patients provides a decision about whether to complete or stop steroid therapy, and when to consider transplantation and dialysis. Trials of the screening of genetic mutations in candidate genes implicated in SRNS pathogenesis, like NPHS1, NPHS2, and PLCE1, is recommended in many populations in which the ethnicity and geographic location are important factors in the variation of the histopathologic lesions. Different genetic mutations in different populations make the need for genetic testing and histological pattern determination of different populations valuable for disease prognosis and management. There have been previous studies screening for NPHS2 mutations in the Egyptian population that showed novel mutations [51, 52]. Therefore, in this study we looked for new mutations of the PLCE1 gene in Egyptian SRNS patients.

In comparison with the database, the investigation revealed two novel heterozygous missense mutations in exon12 (R1230H) and exon15 (E1393K). Each is computationally predicted to be pathogenic and has a high conservation score, and the two SNPs are in two conserved domains in the PLC superfamily. The R1230 position is highly conserved even in Danio rerio, according to Lovric and colleagues, who assert that “the missense mutation is regarded as a disease causing if a position is continuously conserved at least up to Danio rerio (Zebrafish)” [53]. Since the relationship between the SNPs and the disease is obscure, this study was dependent on many prediction tools using different methods to predict the effects of nucleotide variants on structural and functional levels. This analysis was performed step by step, from an estimation of the effect of nucleotide substitution on DNA regulation properties and binding affinity, to residue site conservation and the effect of residue substitution on protein stability, to the interaction and docking properties of the protein with its substrate. The mutant R1230H may lead to destabilization of the whole protein and changes in the affinity of the protein to its ligands. The results were confirmed by the high conservation score of this site. The results are based on many in silico prediction methods, but the results need further clinical and laboratory work for further confirmation.

Missense mutations may affect the function and stability of the PLCε1 protein [8], and lead to glomerular sclerosis [54, 55]. The present study is the first to screen for PLCE1 genetic mutations in Egyptian children by linking computational, molecular, and clinical results, to widen the spectrum of PLCE1 mutations related to SRNS. We demonstrated a novel heterozygous mutation in exon 12, c.3689 G > A (R1230H). This finding may be in accordance with the case of a Caucasian boy from a Romanian family who was diagnosed at six months of age with NS, and failed to respond to steroids. Renal biopsy indicated the presence of DMS, and he reached ESRD at 13 months. He had a PLCE1 missense mutation due to the nucleotide substitution nt3736C > T in exon 12, with the codon change R1246X [56]. Also, there is a registered SNP with dbSNP ID rs778503393 missense variant A/G K1231R (NC_000010.11:g.94259028A > G) (57) with a prediction of pathogenesis matching our novel SNP R1230H in the same domain, indicating that this domain may not be functional, but may affect the protein stability especially it is belonging to a highly conserved domain. This R1230 position may be a mutational hotspot (disease related position), and further in vitro work is needed for confirmation.

A Chinese study showed that the compound heterozygous nucleotide mutation 577G > A, causing codon change V193I, and 2770G > A, causing codon change G924S, altered the function of PLCε1 in a two-year-old Chinese girl with mild mesangial proliferation, who showed resistance to methylprednisolone therapy. She went into complete remission after two weeks of treatment with CsA, a calcineurin inhibitor [58]. These observations are in accordance with our study, which showed a six-year-old boy with two heterozygous mutations in exon 12 and exon 15 had mild focal mesangial disease with minimal change in another set of glomeruli, showed resistance to prednisolone, and entered remission after treatment with both cyclosporine and prednisolone. In another context, a single copy of the heterozygous mutation does not produce FSGS, if the mutation appeared in both parents recessive heterozygous mutations of PLCE1 can aggravate FSGS histology in combination with other heterozygous mutations in other podocyte genes, a phenomenon called bigenic heterozygosity [59]. Thus, a further study with gene panel technique is needed to evaluate the mutational analysis of candidate genes in these patients.

The study also demonstrated a nonsynonymous SNP in exon19 showing amino acid change R1575P, matching the results of Machuca et al. in 2010 [46]. This mutation was not identified as playing a role in the pathogenesis of SRNS in those patients, and this nsSNP (R1575P) also appeared in a Vietnamese study which showed seven-day-old boy diagnosed with CNS with heterozygous inheritance [47].

Conclusions

We identified and described mutations in the PLCE1 gene in Egyptian children. To our knowledge, this is the first study to identify mutations in Egyptian patients with SRNS and widens the spectrum of PLCE1 mutations in children with SRNS. The computational methods used in this study revealed the importance of using a range of algorithms with different prediction capacities to estimate the effect of variations on protein structure and function. These results will encourage other researchers to conduct more analyses of the relationship between PLCE1 mutations and SRNS phenotypes in Egyptian children, and their prevalence.

Limitations

The limitations of this research study included the need for large scale mutational screening of the PLCE1 gene in Egyptian children, with comparisons to healthy controls, to evaluate the prevalence of these mutations in our population, and the lack of in vitro protein analysis. In addition, We screened just part of the gene, only five exons, the need to assess the whole PLCE1 exons for full investigation of mutational screening in those patients.

Availability of data and materials

The datasets supporting the results are included within the article. The data that support the findings of this study are available on request from the corresponding author. The data are not publicly available because of privacy or ethical restrictions.

Abbreviations

ACE:

Atomic contact energy

DMS:

Diffuse mesangial sclerosis

ESRD:

End-stage renal disease

FSGS:

Focal segmental glomerulosclerosis

HGNC:

HUGO Gene Nomenclature Committee

NCBI:

National Center for Biotechnology Information

NS:

Nephrotic syndrome

RMSD:

Root mean square deviation

SAV:

Single amino acid variant

SRNS:

Steroid-resistant nephrotic syndrome
